Specification Category |
Feature |
Technical Detail |
|
General |
SAP No / Ref No |
140012609 / EDC591 |
|
|
Range Name |
SEMI-PRO TOOLS |
|
|
Colour |
YELLOW |
|
|
HS Code |
8467292000 |
|
Electrical |
Rated Power |
550W (Pure Copper Motor) |
|
|
Rated Voltage |
220-240V~50/60Hz |
|
Performance |
No-load Speed |
15,800 rpm |
|
|
Planing Width x Depth |
82 x 1 mm (Max) |
|
|
Rabbeting Depth |
9 mm (Max) |
|
Features |
Blade Material |
High-speed steel |
|
|
Drive System |
Flexible belt |
|
Logistics |
Product N.W (Unit) |
2.75 KG |
|
Blade System |
Reversible Planer Blades |
|
|
Dust Collection |
Dust Extraction Port (Side or Rear) |
|
|
Application |
Door Fitting, Window Framing, Surface Smoothening |
|
|
Adjustment |
Front Knob Depth Adjustment |
|

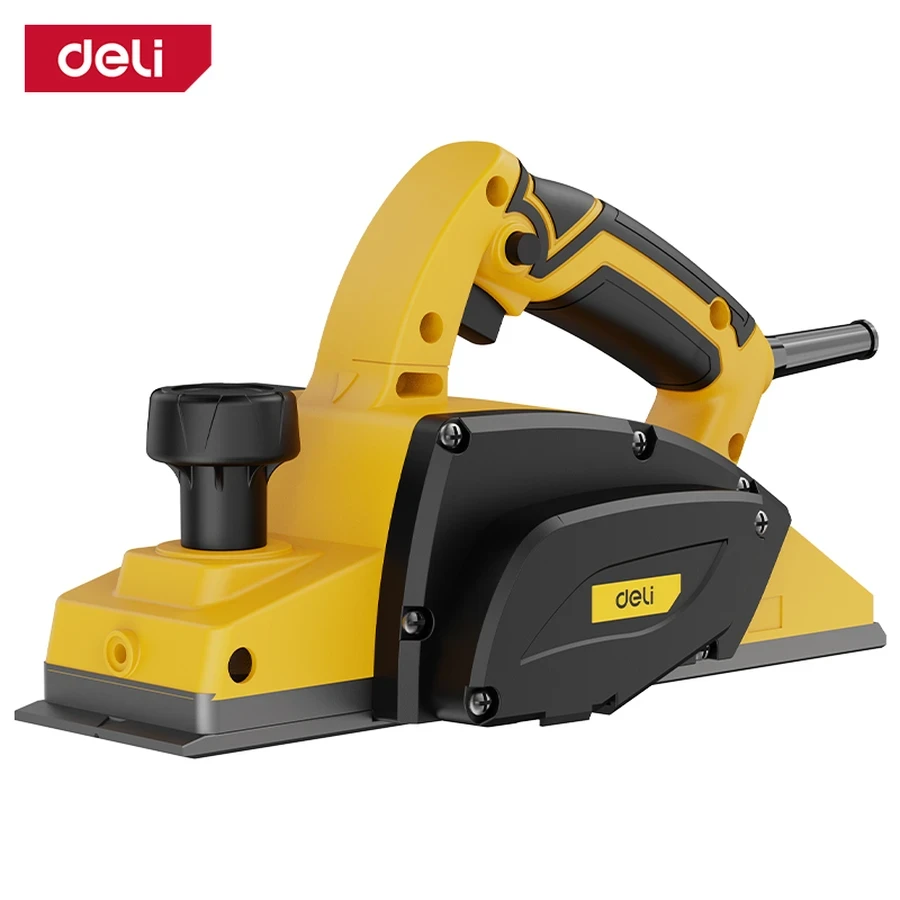

Robust Power and Speed: Equipped with a 550W pure copper motor, delivering a high No-load speed of 15,800 rpm for fast and efficient surface planing and smoothing.
Precise Planing Capacity: Offers a standard planing width of 82mm with an adjustable cutting depth up to 1mm, and features a maximum 9mm Rabbeting Depth for cutting steps along board edges.
Premium Blades: Utilizes a High-speed steel blade for sharp, smooth cuts on wood, ensuring a superior finish and long service life.
Adjustable & Stable Design: The planning depth can be freely adjusted for simple operation, and the Flat bottom plate ensures accurate and stable movement across the workpiece.
Comprehensive Kit: Comes with a tool carriage, knife sharpener, socket wrench, parallel guide, and extra carbon brushes to ensure immediate use and maintenance.
