Specification Category |
Feature |
Technical Detail |
|
General |
SAP No / Name |

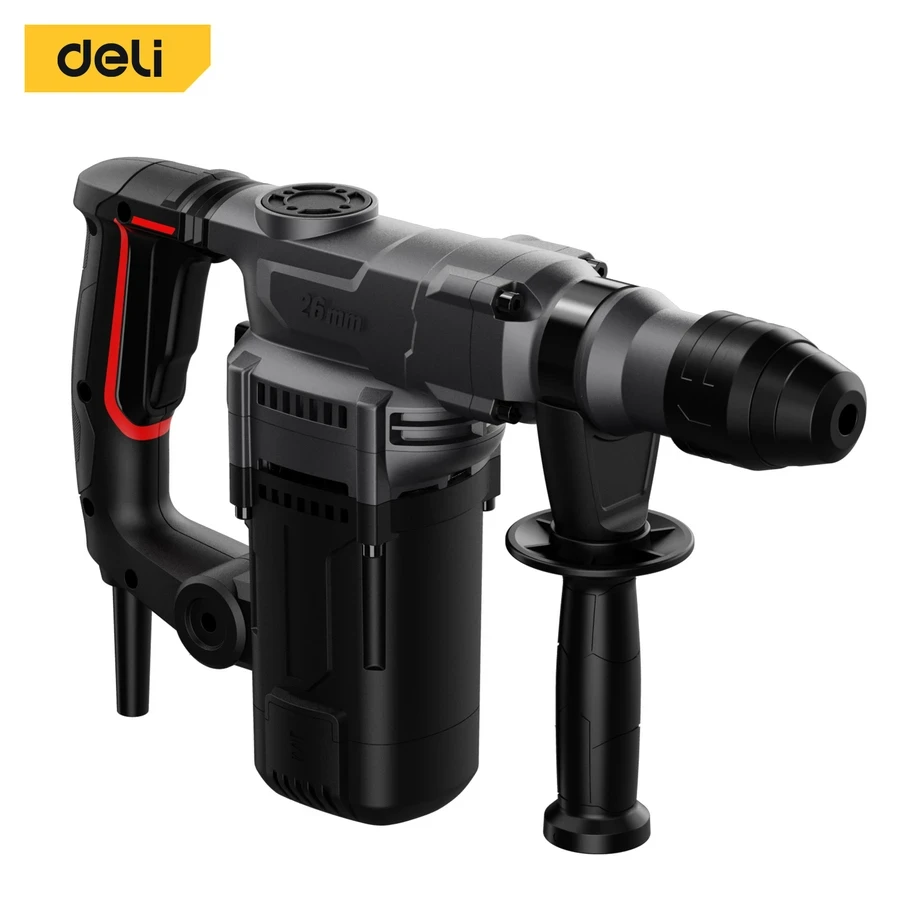

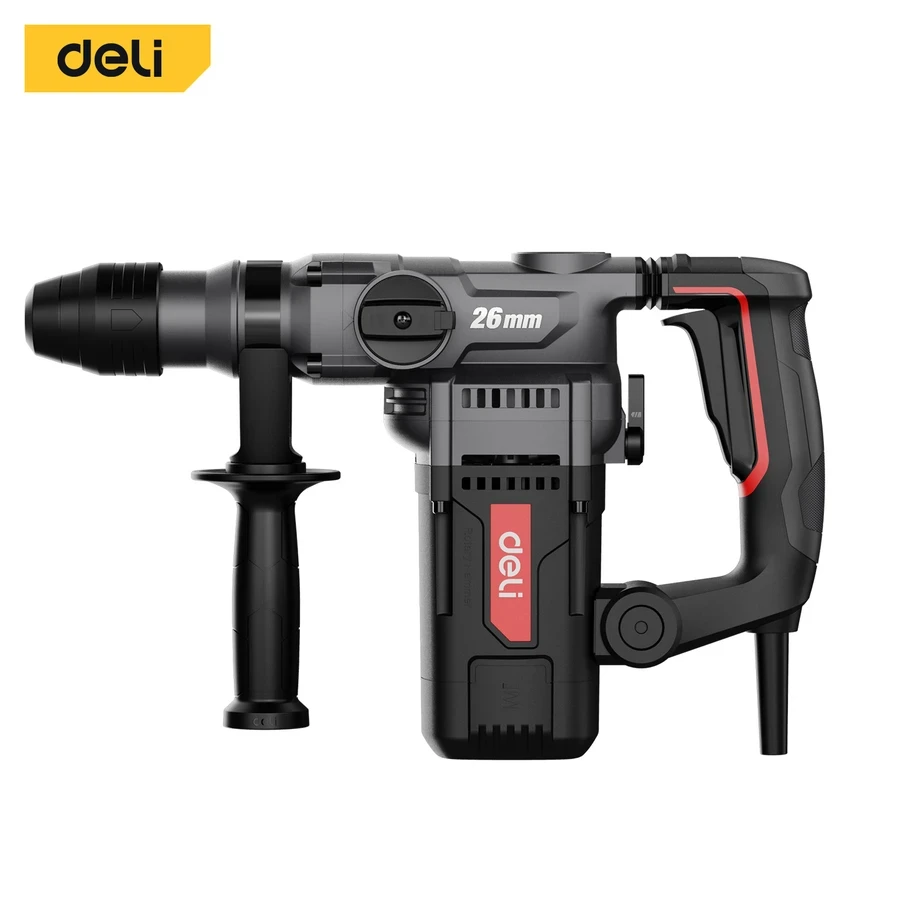

140000930 / Rotary Hammer |
|
|
Colour |
RED |
|
|
Material |
Plastic + Iron |
|
|
HS Code |
8467299000 |
|
Electrical |
Rated Power |
1100W |
|
|
Rated Voltage |
220-240V~50/60Hz |
|
Performance |
No-load Speed |
0-1300 rpm |
|
|
Impact Rate |
0-4800 bpm |
|
|
Impact Energy |
5 J |
|
Capacity |
Max Concrete Drilling |
26 mm |
|
|
Max Steel/Wood Drilling |
13 mm / 30 mm |
|
Features |
Vibration Control |
Body/Handle Shock-absorbing slingshot structure |
|
|
Motor Chamber |
Large diameter cylinder |
|
|
Oil Integrity |
Fully sealed (without oil leakage) |
|
Logistics |
Product N.W (Unit) |
5.60 KG |
|
Operating Modes |
3 Modes (Drill, Hammer Drill, Chisel) |
|
|
Clutch Type |
Safety Clutch |
|
|
Chuck System |
SDS-Plus (Quick-Change) |
|
|
Application |
Drilling Concrete, Breaking Light Masonry, Chiseling |
|
Exceptional Power and Force: Features a High power 1100W motor and a Large diameter cylinder to deliver a significant Impact Energy of 5 J (Joules) at up to 4800 bpm, ensuring quick penetration of hard concrete.
Superior Comfort and Control: Designed with a shock-absorbing slingshot structure between the body and handle, dramatically reducing vibration and enhancing user comfort and control during extended use.
Enhanced Durability: Built with a Fully sealed structure without oil leakage, protecting the internal components and ensuring the tool's long-term reliability and service life.
Safety Features: Includes Trip protection for user safety and operates at a manageable No-load speed of 0-1300 rpm with the industry-standard SDS plus chuck system.
Comprehensive Drilling Capacity: Capable of handling high-demand drilling tasks with maximum capacities: Concrete: 26 mm, Wood: 30 mm, and Steel: 13 mm. Comes in a BMC case with 3 drills, 2 chisels, and extra carbon brushes.
