Specification Category |
Feature |
Technical Detail |
|
General |
Ref No / SAP No |
EDH-MGP180-E1 / 100157955 |
|
|
Range Name |
Yellow Series Tools |
|
|
Colour |
Black |
|
|
HS Code |
8467991000 |
|
Material |
Abrasive Material |
Resin + Brown corundum + Carborundum |
|
Dimensions |
Size & Spec. |
180x6.0x22.2mm (OD x T x ID) |
|
|
Product Size (L x W x H) |
18.000 x 18.000 x 0.600 CM |
|
|
Product G.W / N.W (Unit) |
0.32 KG / 0.32 KG |
|
Performance |
Key Feature |
Thickened steel ring |
|
|
Application |
Metal Grinding |
|
Logistics |
Sales Pk. |
Hang Tag |
|
|
Master Quantity |
50 CAR |
|
|
CBM (m³) |
0.016 |
|
Max. Safe Speed |
~8,600 RPM |
|
|
Disc Shape |
Type 27 (Depressed Center) |
|
|
Applicable Metals |
Iron, Mild Steel, Structural Steel, Weld Beads |
|
|
Operating Speed |
80 m/s |
|
Heavy-Duty Grinding Thickness: Features a substantial 6.0 mm thickness, designed for aggressive grinding, stock removal, weld smoothing, and heavy-duty surface preparation.

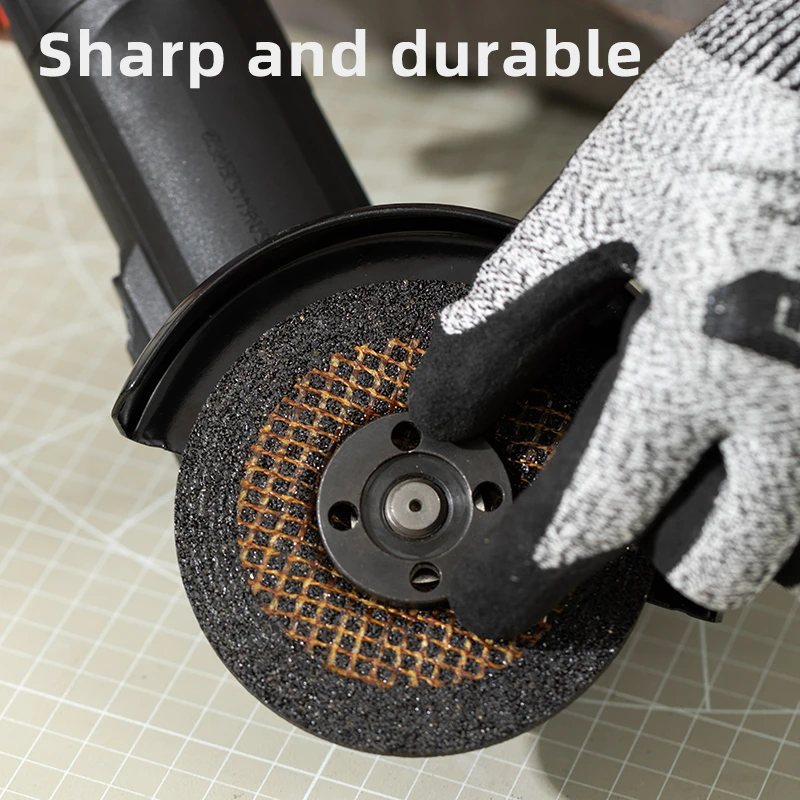

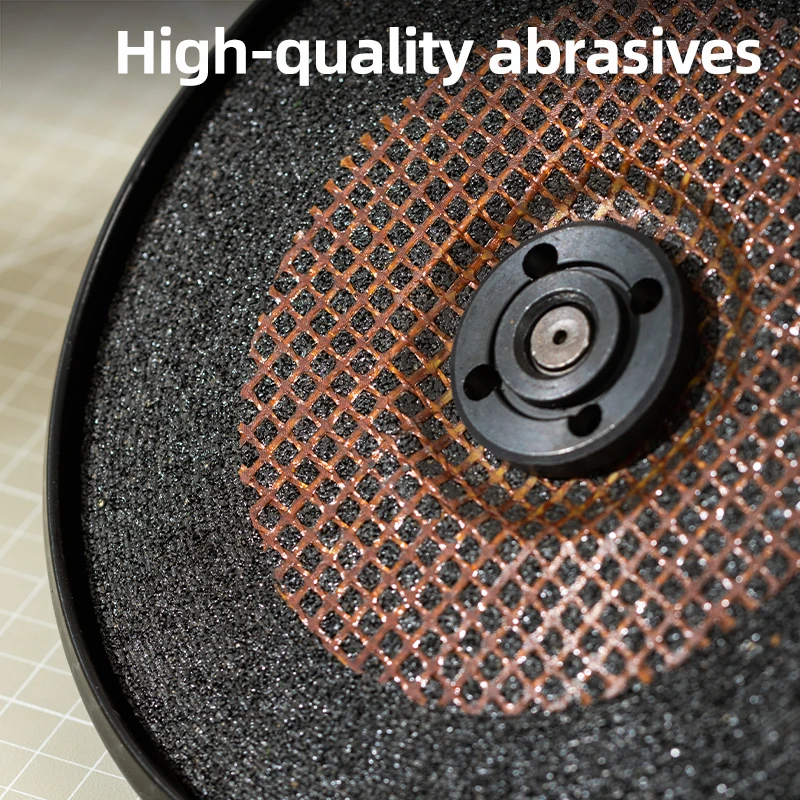

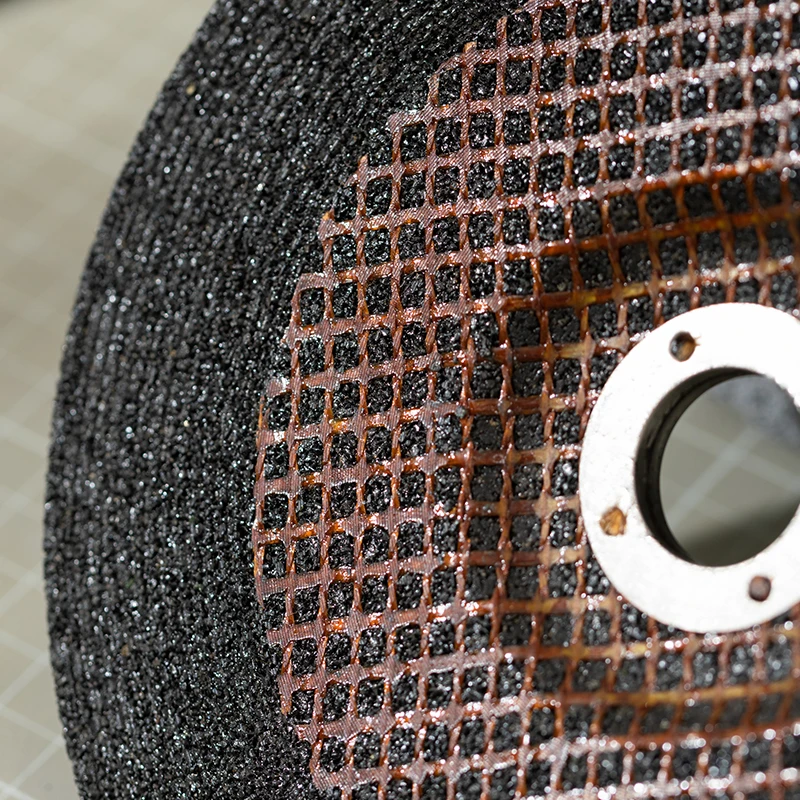

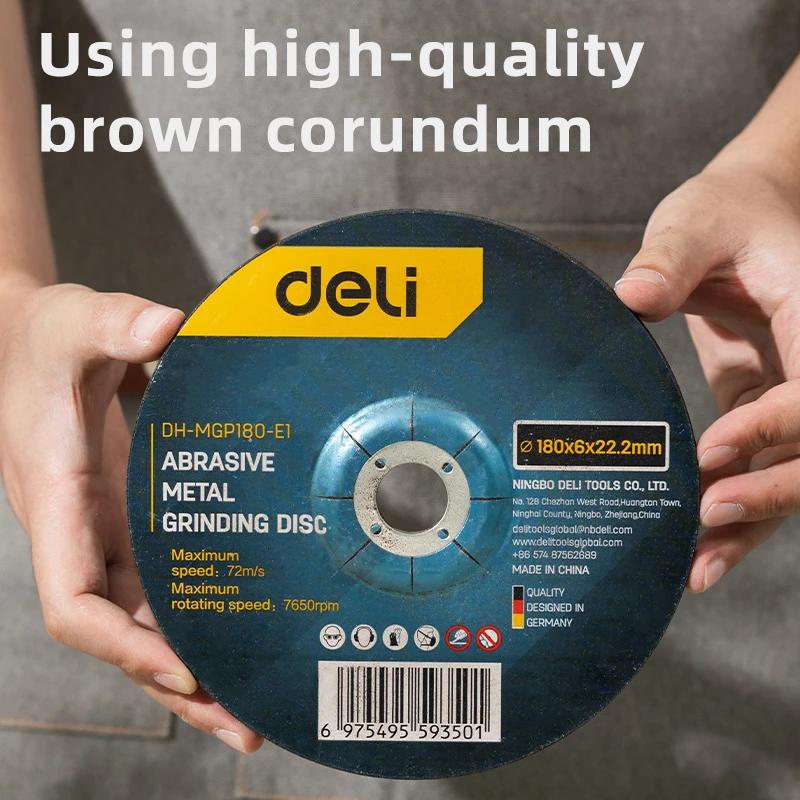

Premium Abrasive Compound: Made from a Composite material primarily using Brown corundum in a Resin bond, delivering excellent wear resistance, making the disc sharp and durable.

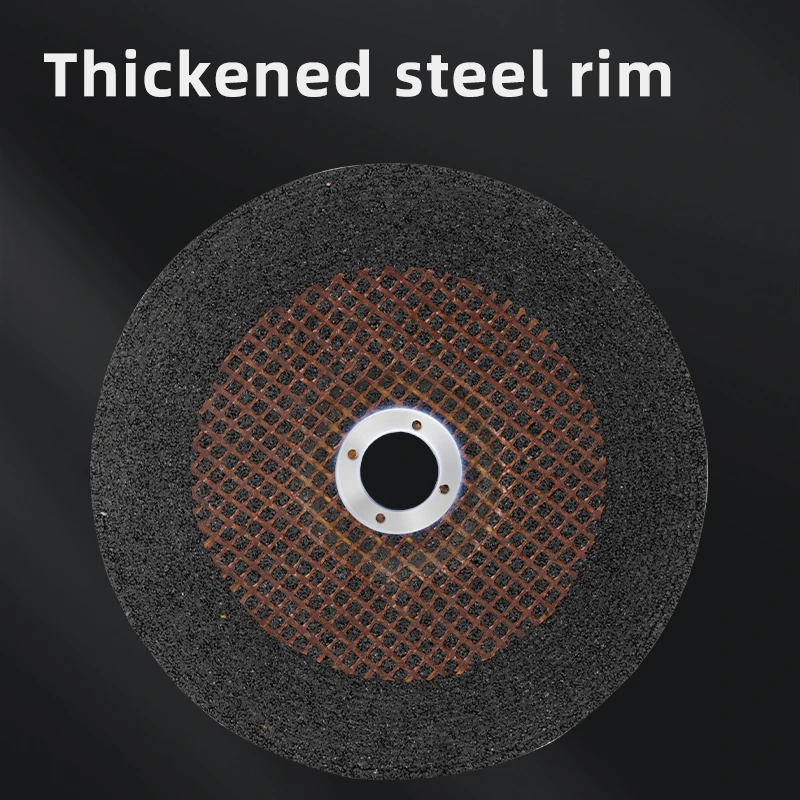

Enhanced Safety and Stability: Includes a Thickened steel ring around the arbor hole which provides enhanced holding strength, preventing the disc from collapsing or loosening under heavy lateral pressure.

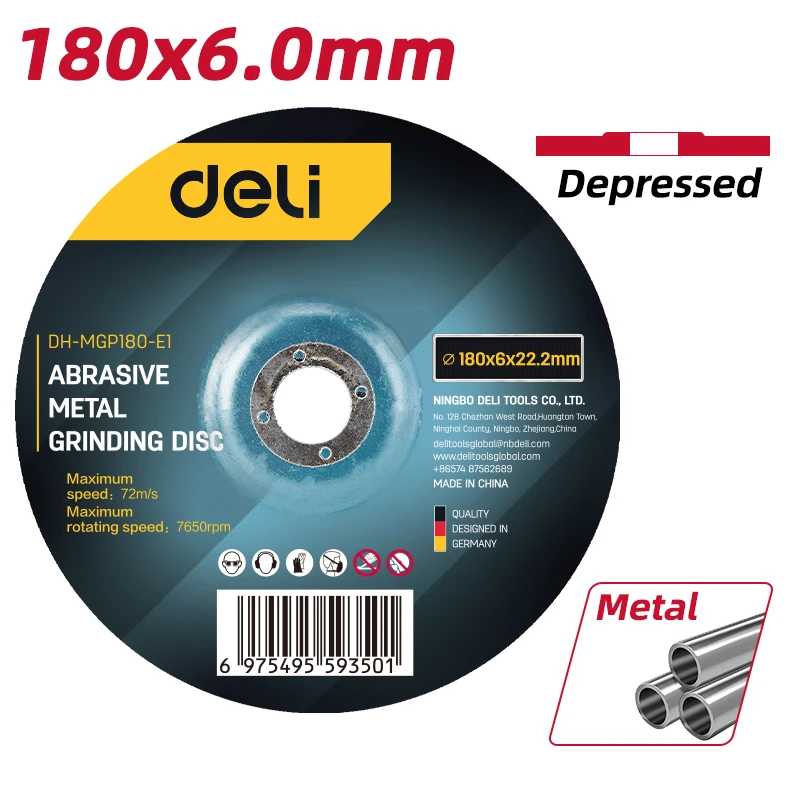

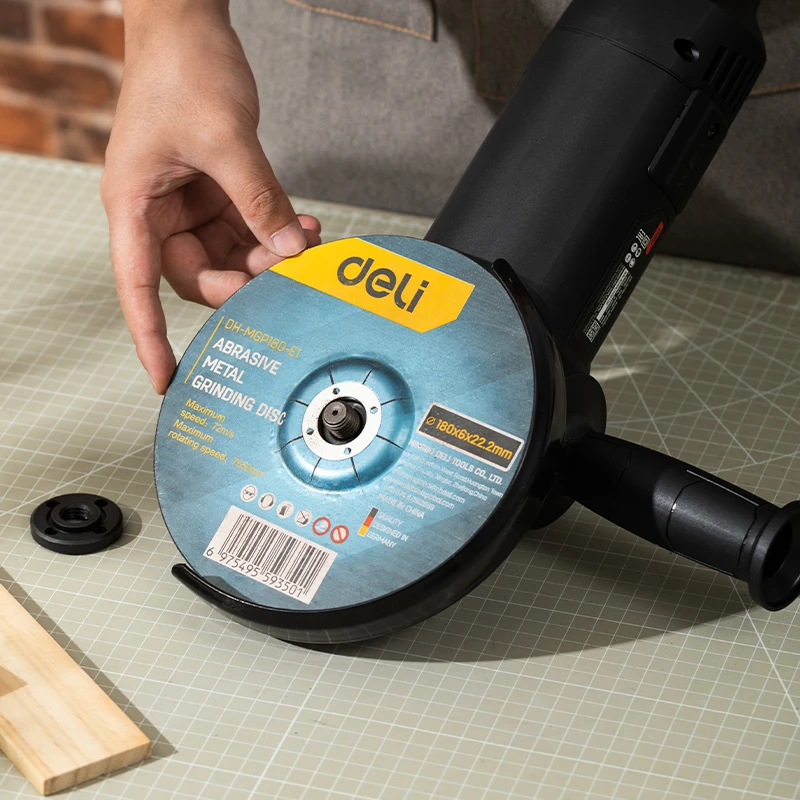

Standard Industrial Size: The disc measures 180 mm (7 inches) in diameter with a standard 22.2 mm arbor hole, perfectly fitting most large angle grinders for professional use.

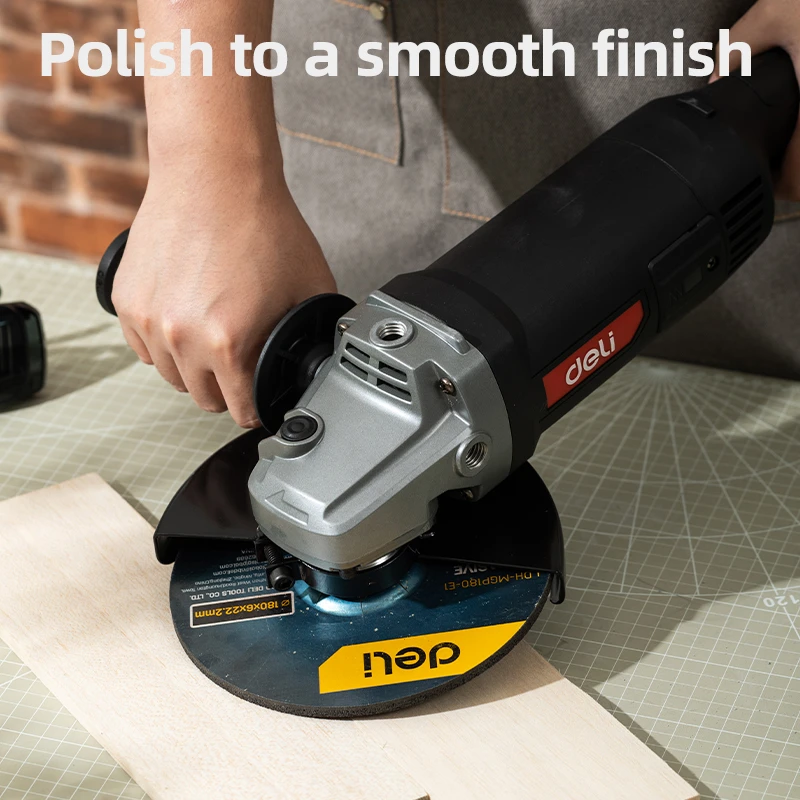

High-Performance Grinding: The combination of abrasive material and thickness is optimized for fast material removal on metals, including steel and iron, providing high efficiency on site.
