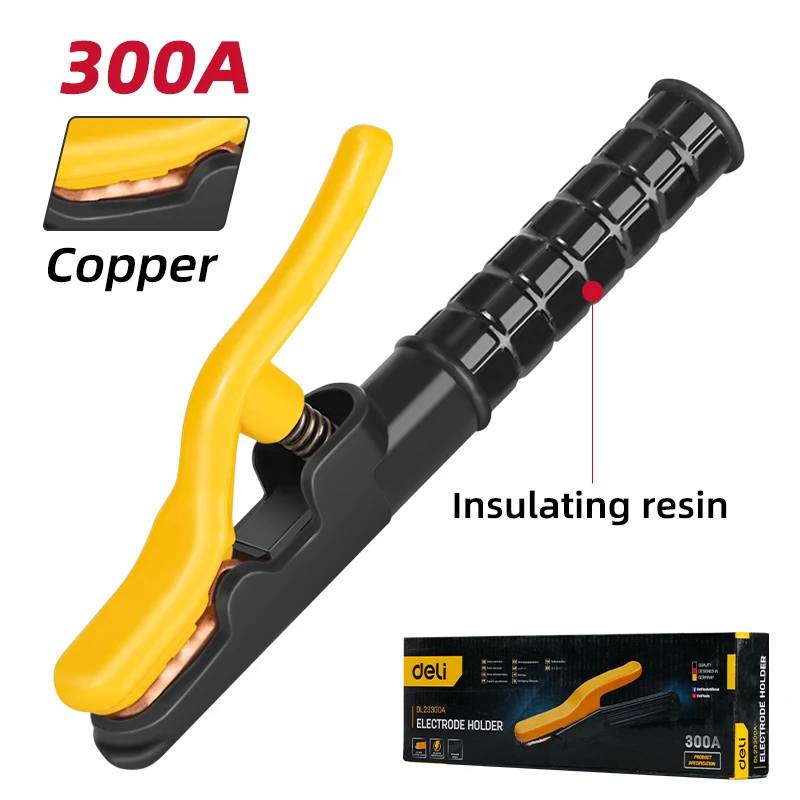

EDL23300A Electrode Holder 300A - Brass Body, DMC Insulated Handle, Supports 35–50mm² Cable & 4.0–6.3mm Electrode (Yellow)
|
Specification Category |
Feature |
Technical Detail |
|
General |
Ref No / SAP No |
EDL23300A / 100159444 |
|
|
Range Name |
Yellow Series Tools |
|
|
Launch Time |
Sep-22 |
|
|
Size & Spec. |
300A |
|
|
Material |
Brass |
|
|
Colour |
Yellow |
|
|
HS Code |
8515900090 |
|
Performance |
Rated Current |
300A |
|
|
Electrode Size |
4.0~6.3mm |
|
|
Cable Cross Section |
35~50 mm² |
|
Dimensions & Logistics |
Product Size L x W x H |
30.000 x 9.500 x 4.000 CM |
|
|
Product G.W / N.W (Unit) |
0.56 KG / 0.56 KG |
|
|
Sales Pk. |
Color Box |
|
|
Master Quantity |
40 |
|
|
CBM (m³) |
0.054 |
|
Handle Material Type |
Dough Moulding Compound (DMC) |
|
|
Cooling Method |
Air Cooled |
|
|
Connection Type |
Standard Screw or Hex Key Type |
|
|
Application |
Manual Metal Arc (MMA) / Stick Welding |
|
- Medium-Duty Rated Current: Capable of handling a Rated current of 300A, ideal for standard workshop use, site fabrication, and medium-duty Manual Metal Arc (MMA) welding.

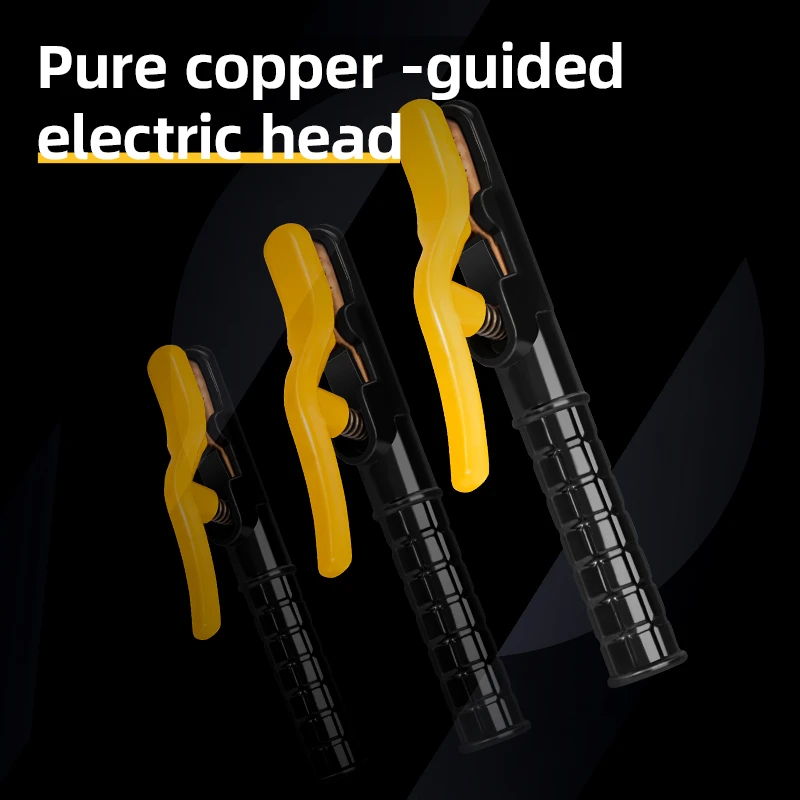

- Superior Conduction Materials: Features a Red copper conductive head for outstanding conductivity and is constructed from durable Brass material for a robust and reliable connection.
- Broad Electrode and Cable Compatibility: Supports large electrode sizes from 4.0 mm to 6.3 mm and is compatible with welding cables with a cross-section of 35 to 50 mm².
- Enhanced Safety and Durability: Built with a DMC insulated handle that is non-slip and offers high resistance to wear, high temperature, and impact, maximizing operator safety.
- Easy and Secure Gripping: Equipped with a strong magnetic bit (or strong clamping mechanism, based on context) for easy electrode gripping and secure holding during the welding process.
