Specification Category |
Feature |
Technical Detail |
|
General |
SAP No / Ref No |
100141302 / EDL291000 |
|
|
Tool Name |
Spirit Level (Box Beam) |
|
|
Colour |
YELLOW |
|
|
HS Code |
9031809090 (Measuring instruments) |
|
Tool Specs |
Size / Length |
1000mm (1 meter / ~39 inches) |
|
|
Body Material |
Aluminum |
|
|
Accuracy (Horizontal) |
0.5mm/m |
|
|
Vials / Function |
Horizontal, Vertical, 45° (3-in-1) |
|
|
Surface Treatment |
CNC fine milling |
|
Physical |
Product N.W (Unit) |
0.505 KG (505.00 G) |
|
|
Product Dimensions |
100.0 x 4.9 x 2.3 CM |
|
Vial Focus |
High-Precision |
|
|
End Caps |
Shock-Absorbing Rubber/Plastic |
|
|
Application |
Framing, Cabinetry, Window/Door Installation, Commercial Construction |
|
|
Body Profile |
Box Beam (Inferred) |
|

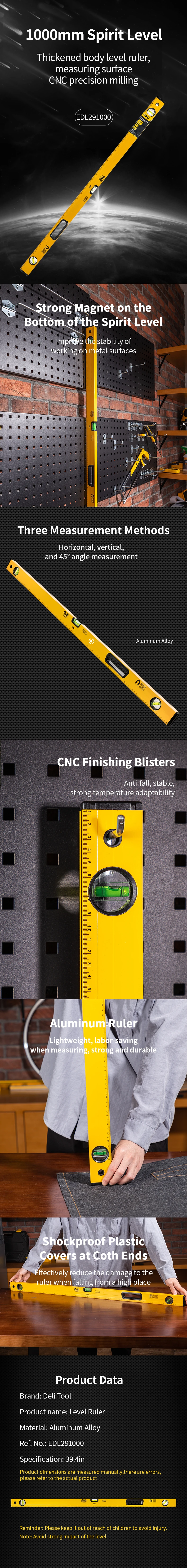

Ultra-High Accuracy: Features a Horizontal level vial with 0.5mm/m accuracy (Sales Point 2), providing precise measurements suitable for all professional and critical applications.

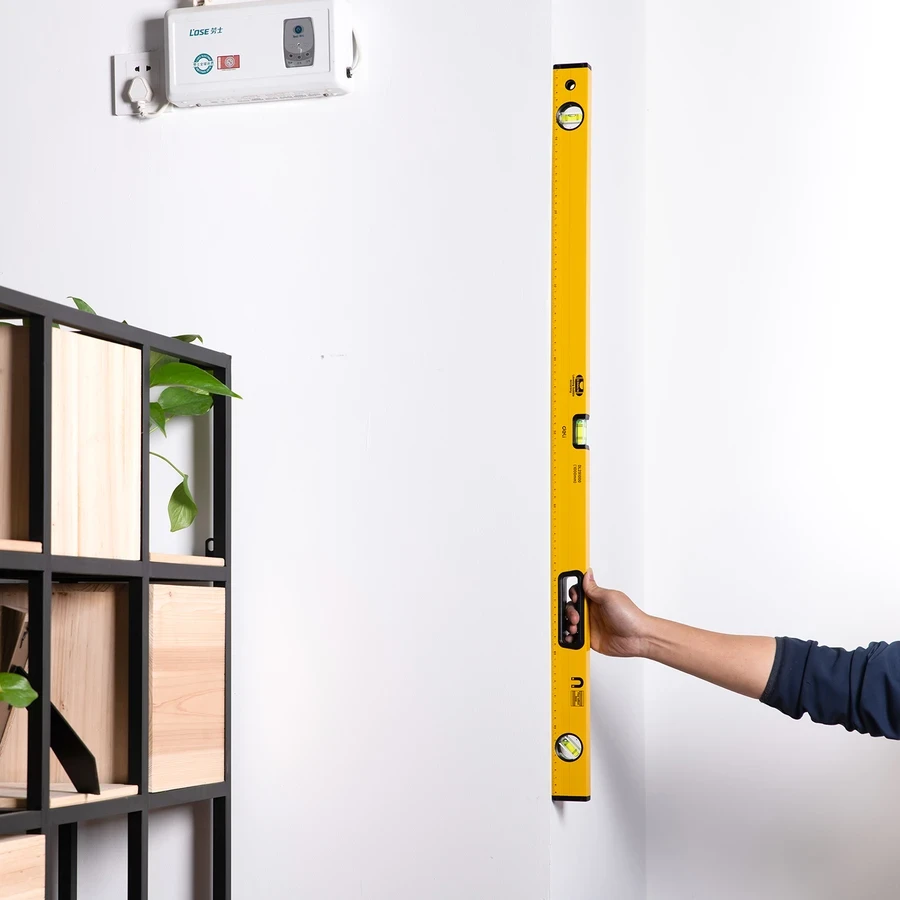

3-in-1 Versatility: Offers 3-in-1 function: horizontal, vertical, and 45° measurement (Sales Point 1), covering all common angular and planar leveling needs in construction.

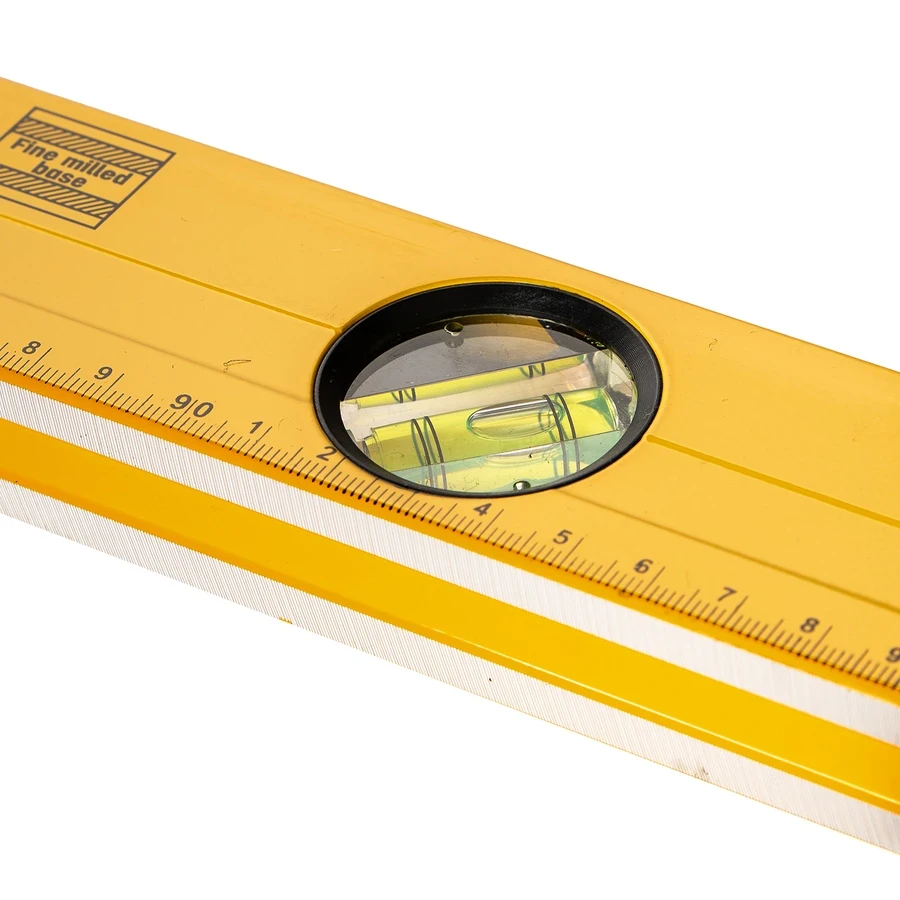

Precision Milled Surface: The body features CNC fine milling (Sales Point 3) on the working surface, ensuring a perfectly flat surface and highly accurate measurement transfers.
Built for Durability: Equipped with Thickened cover of two ends (Sales Point 4) for superior impact and shock resistance, protecting the level from damage on the job site.

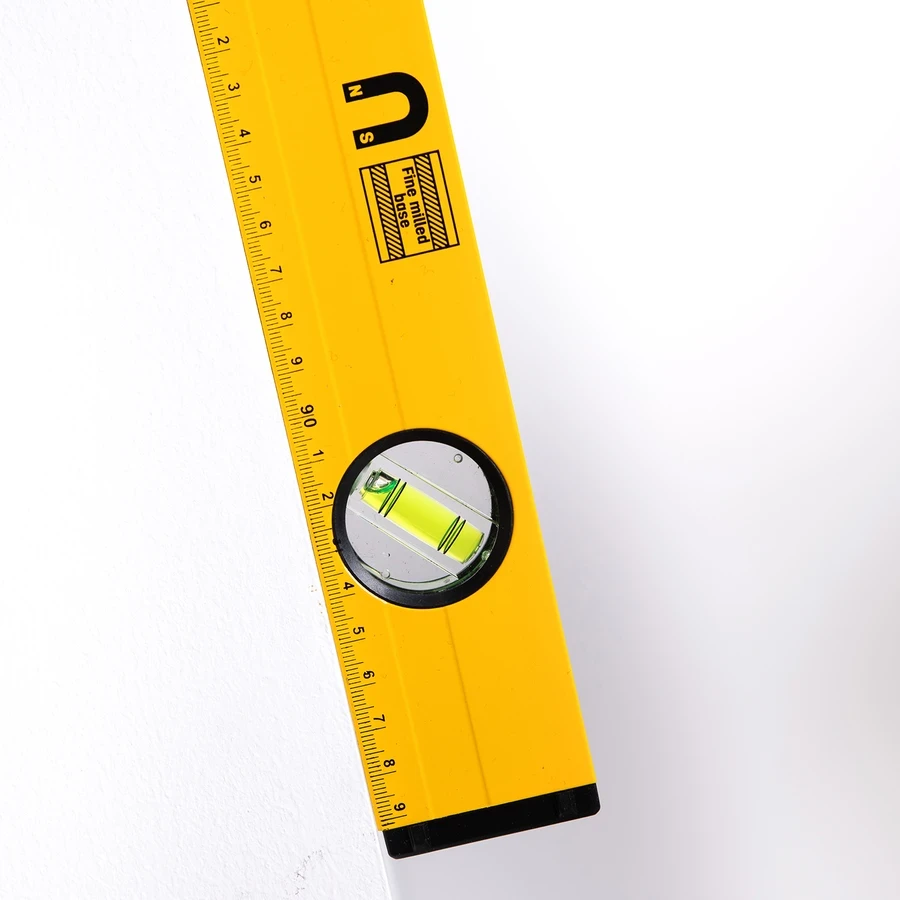

Measurement & Lineation Aid: Includes a Clear scale on the body (Sales Point 5) for convenient lineation and measurement, adding utility beyond simple leveling.
