Specification Category |
Feature |
Technical Detail |
|
Model |
Item Code |
CS-CB3-R100-2D2WFL |
|
Camera |
Max. Resolution |
1080P (1920 × 1080) |
|
|
Image Sensor |
1/2.9” 2-Megapixel Progressive Scan CMOS |
|
|
Lens |
2.8mm @ F2.0, 128° Diagonal View |
|
|
Night Vision |
IR 15 m, Color Night Vision 15 m |
|
|
IP Grade |
Weatherproof Design (Outdoor Rated) |
|
Power & Storage |
Battery Capacity |
5200 mAh |
|
|
Local Storage |
Supports microSD Card (Max. 256 GB) |
|
|
Power Supply |
DC 5V / 2A (Adapter purchased separately) |
|
Video & AI |
Video Compression |
H.265 / H.264 |
|
|
Smart Alarm |
Smart Human Motion Detection |
|
|
Audio |
Supports Two-way Talk |
|
Network |
Wi-Fi Standard |
IEEE802.11b/g/n (2.4 GHz only) |
|
|
Min. Network Requirement |
2 Mbps |
|
General |
Operating Temp. |
-20 °C to 50 °C |
|

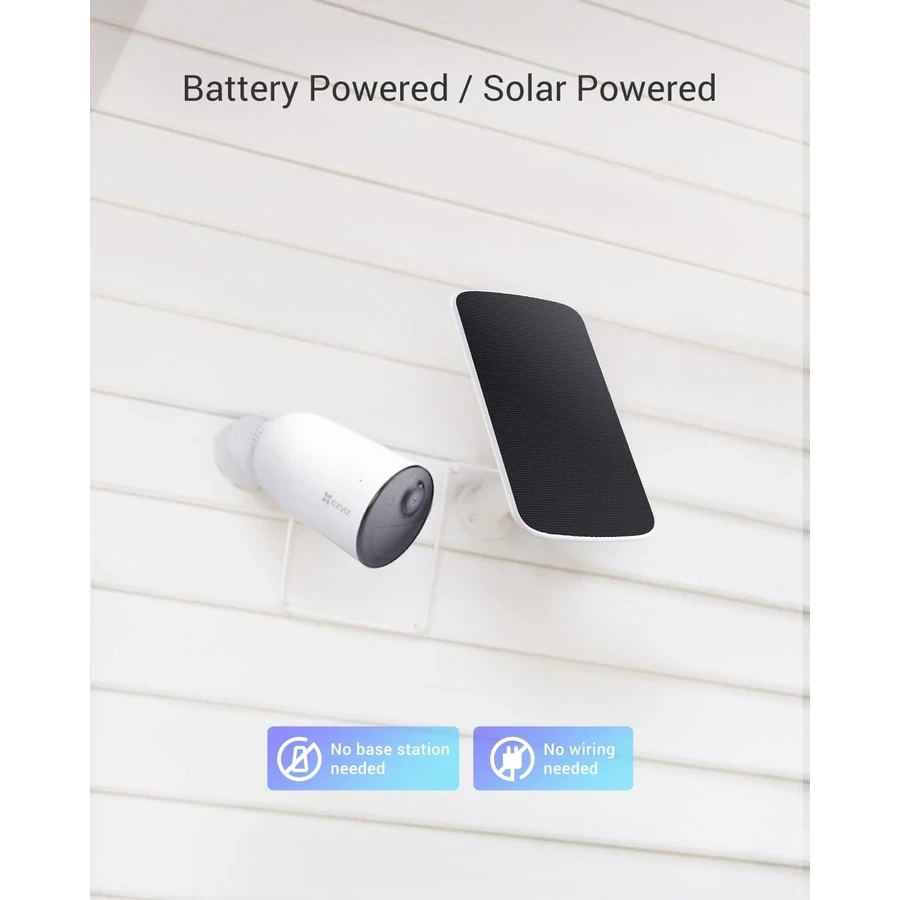

Solar Charging |
Optional Solar Panel Support (Inferred for CB series) |
|
|
Installation |
Screw Base, Mounting Plate, Drill Template Included |
|
|
Audio |
Built-in High-Sensitivity Mic and Speaker (Inferred) |
|
|
Image Quality |
3D DNR |
|
|
Security |
Password Protection, Watermark |
|
1080P Full HD & H.265: Records clear, high-definition video at 1920 x 1080 (1080P) resolution and maximizes battery life/storage efficiency using the advanced H.265 video compression standard.

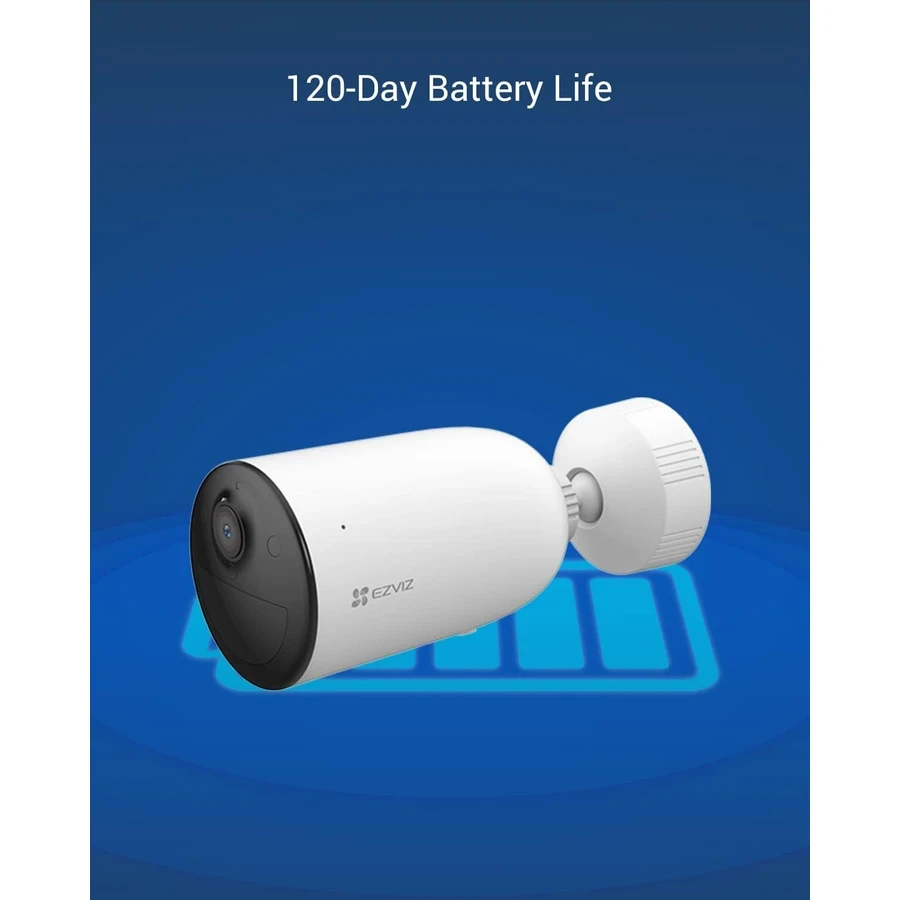

Wire-Free Battery Power: Equipped with a 5200 mAh rechargeable battery for easy, completely wire-free installation, making placement flexible, and features a robust Weatherproof Design.
Combined Night Vision: Provides clear nighttime footage up to 15m using both traditional IR Night Vision and enhanced detail via Color Night Vision mode.
Smart AI Human Detection: Ensures focused security alerts by featuring Smart Human Motion Detection, ignoring irrelevant motion from vehicles or natural elements.
Two-Way Talk & Storage: Allows real-time remote communication via Two-way Talk and supports substantial local recording with up to 256 GB via a microSD Card slot.
