Specification Category |
Feature |
Technical Detail |
|
Model |
Item Code |
CS-H1c |
|
Camera |
Max. Resolution |
1920 × 1080 (1080P Full HD) |
|
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
|
Lens |
2.8mm, 108° Diagonal View |
|
|
IR Night Vision |
Up to 10 m (32 ft) |
|
|
Video Compression |
H.264 (Main Profile) |
|
Network & Function |
Wi-Fi Standard |
IEEE802.11b/g/n (2.4 GHz only) |
|
|
Smart Alert |
Motion detection |
|
|
Audio |
Supports Two-way Talk |
|
Interface |
Local Storage |
Supports microSD card (Up to 512 GB) |
|
|
Cloud Storage |
Supports EZVIZ CloudPlay (Subscription required) |
|
General |
Power Supply |
DC 5V / 1A |
|
|
Power Consumption |
MAX. 3.0 W |
|
|
Dimensions |

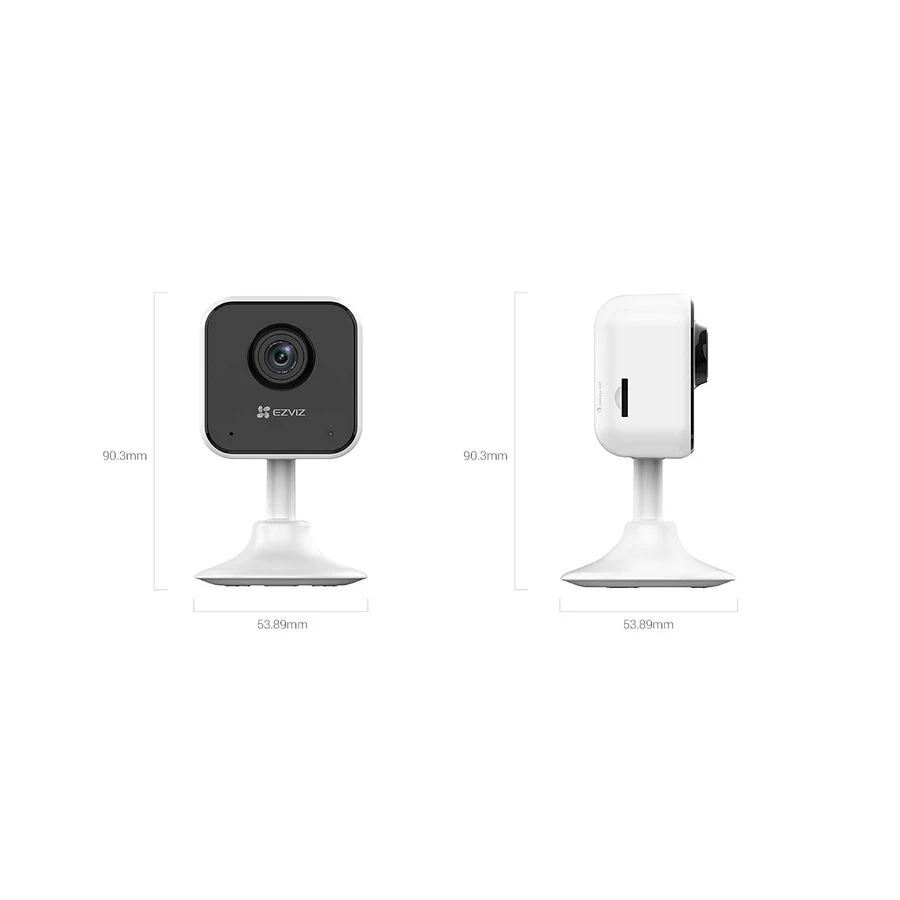

53.89 × 53.89 × 90.3 mm (Compact) |
|
Installation |
Flexible Mounting (Inferred) |
|
|
Operating System |
EZVIZ App Control (Inferred) |
|
|
Frame Rate |
Smooth Video (Inferred) |
|
|
Power Cable |
2-Meter Power Cable (Confirmed in Box) |
|
|
Design |
Lightweight (87 g Net Weight) |
|
Clear 1080P Full HD Video: Captures high-quality video with 1920 × 1080 Max. Resolution at up to 25 fps, ensuring clear and smooth monitoring of indoor spaces.
Two-Way Talk Functionality: Includes a built-in microphone and speaker (inferred) to support Two-way Talk, allowing for seamless communication with pets, family, or intruders via the camera.

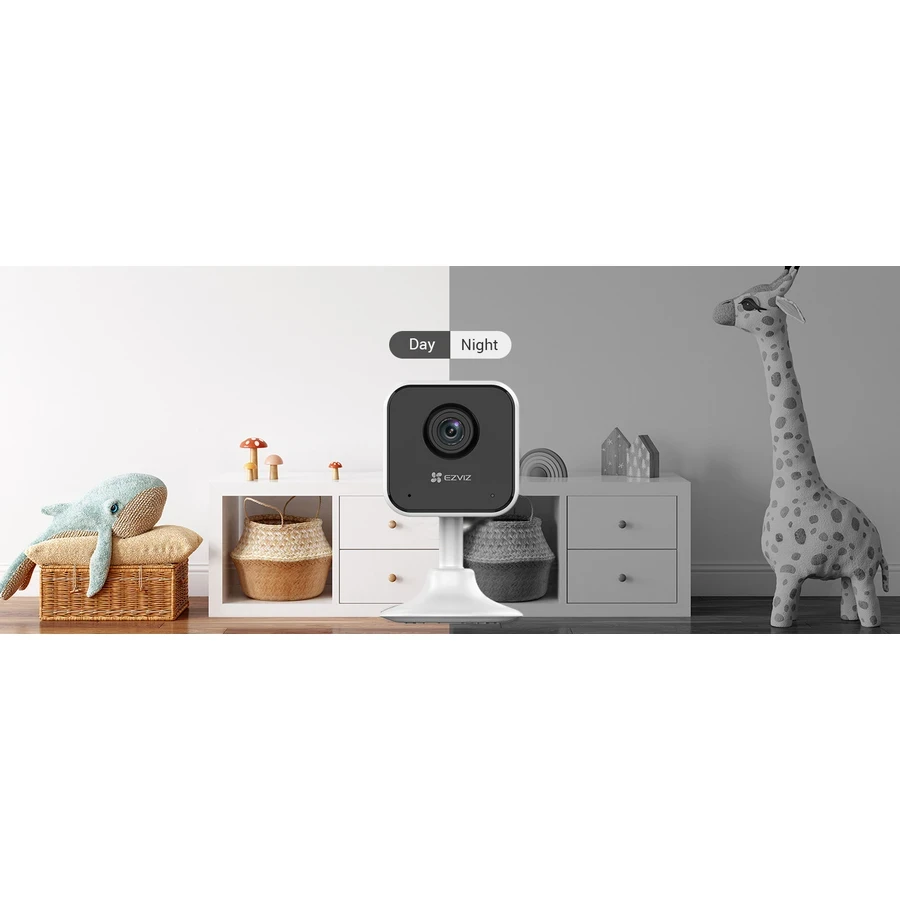

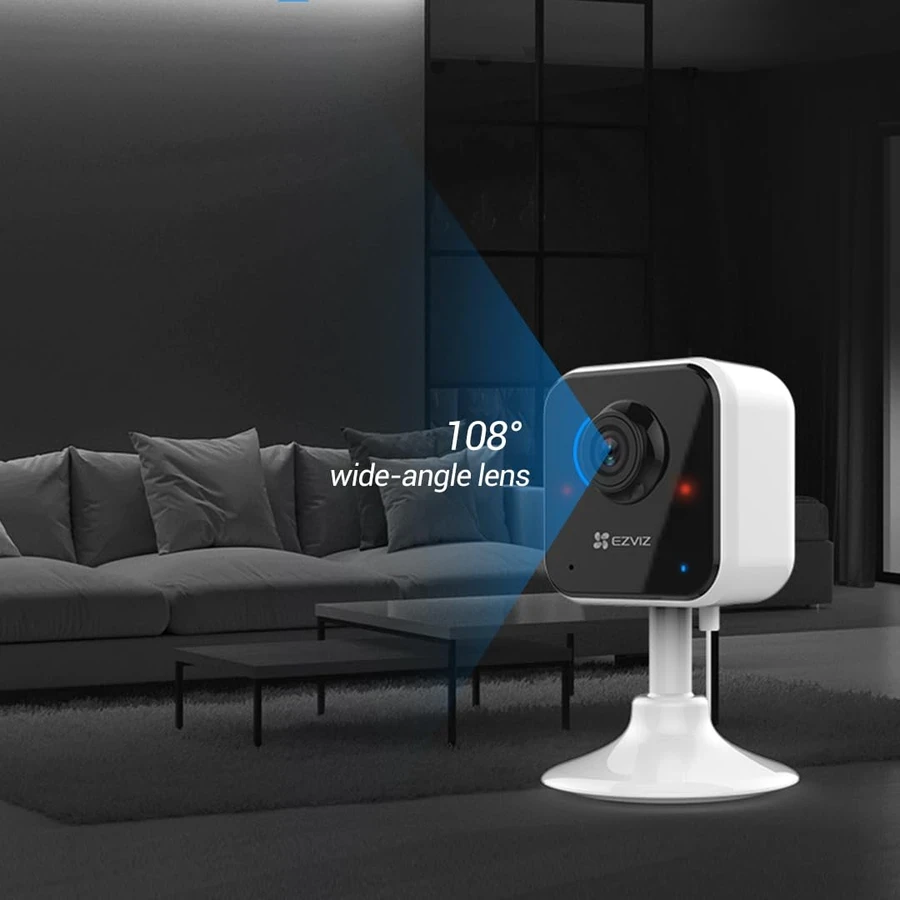

Wide-Angle Coverage & Night Vision: Features a wide 2.8mm lens with a 108° Diagonal viewing angle and provides clear night vision up to 32 ft (10 m) in total darkness using IR illumination.
Smart Alert & High Storage Capacity: Equipped with Motion detection smart alerts and supports massive local recording up to 512 GB via a microSD card slot, along with optional CloudPlay storage.
Secure and Compact Design: Operates on standard 2.4 GHz Wi-Fi, uses efficient H.264 compression, and features essential security and image functions like Password Protection and 3D DNR within a small, unobtrusive body.
