Specification Category |
Feature |
Technical Detail |
|
General |
Model / Item Code |
CS-H9c-R100-8H33WKFL |
|
|
IP Grade |
Weatherproof Design (Inferred) |
|
|
Operating Temperature |
Minus 30 degrees C to 50 degrees C (Inferred) |
|
Camera/Video |
Max Resolution |
2304 x 1296 Pixels (2K) |
|
|
Dual Lens Focal Length |
Upper: 2.8mm; Bottom: 6mm |
|
|
PT Angle |
Pan: 350 degrees, Tilt: 80 degrees |
|
|
Black & White Night Range |
30 meters / 98 feet |
|
|
Video Compression |
H.265 / H.264 |
|
Connectivity |
Wi-Fi Standard |
IEEE802.11b/g/n (2.4 GHz) |
|
|
Wired Network |
RJ45 x 1 (10M / 100M Adaptive Ethernet Port) |
|
|
Local Storage |
Supports MicroSD Card (Up to 512 GB) |
|
Audio |
Two-way Talk |
|
|
Frame Rate |
Maximum 15 frames per second |
|
|
Smart Alarm |
Human and Vehicle Detection |
|
|
Video Bit Rate |
Quad HD, Full HD, Standard |
|

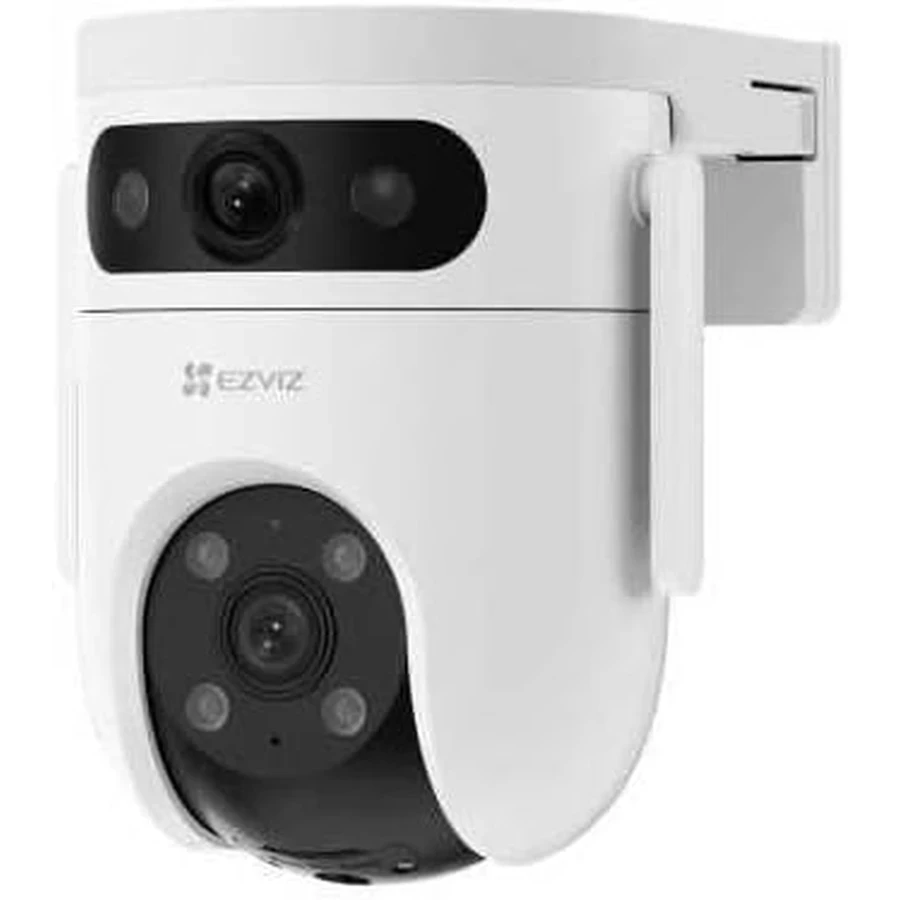

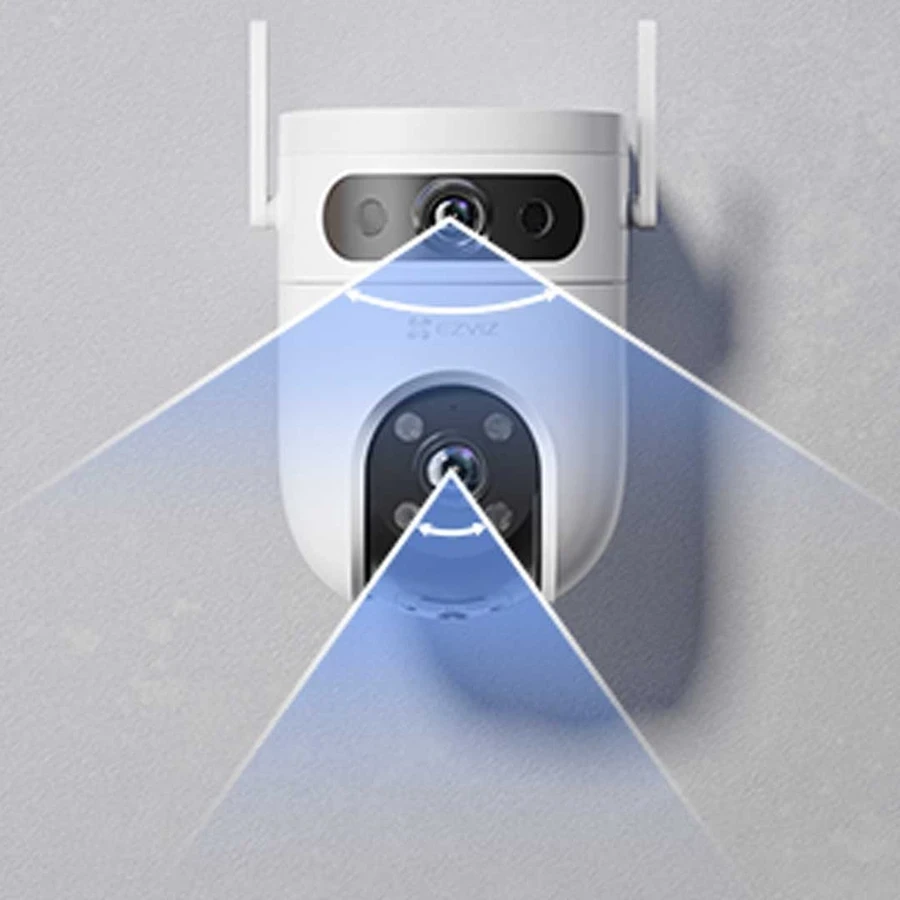

Dual-Lens Wide Coverage: Equipped with two lenses (2.8mm wide-angle and 6mm telephoto) to capture two perspectives simultaneously. The combination allows for both a close-up tracking view and a panoramic overview.

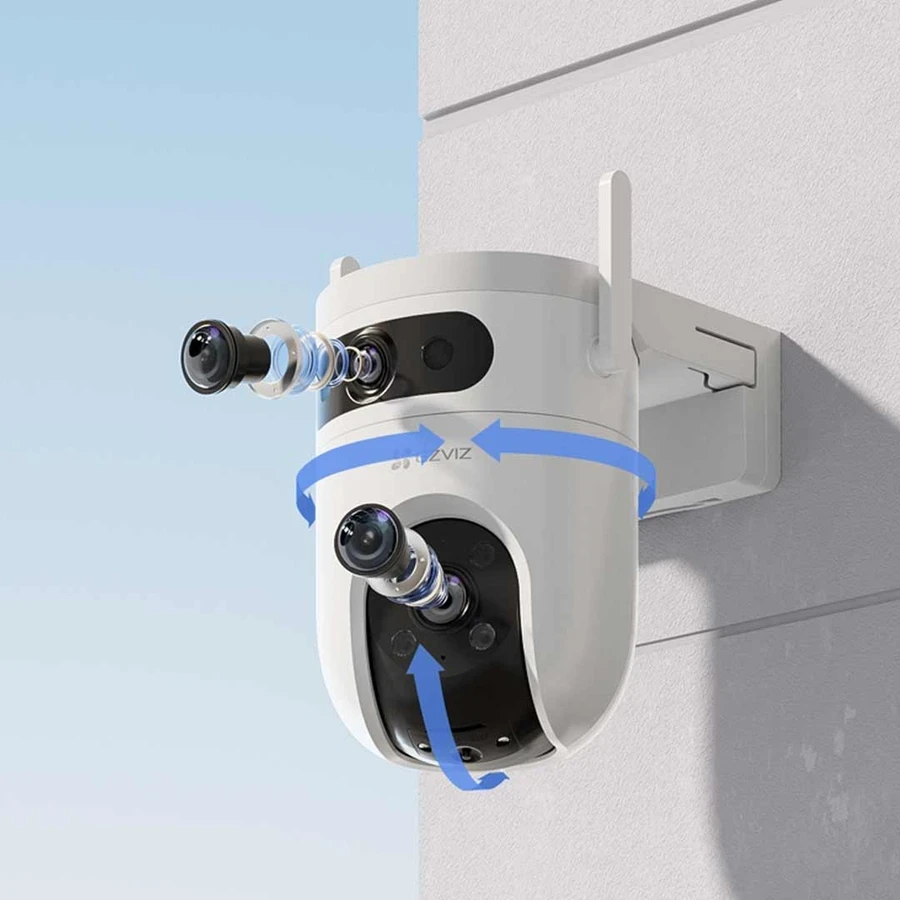

2K High Resolution and Pan-Tilt: Captures sharp video with a maximum resolution of 2304 by 1296 (2K) pixels. The motorized lens offers 350-degree pan and 80-degree tilt for flexible monitoring of the environment.
Intelligent AI Detection: Features AI-powered detection for both human shapes and vehicle shapes, providing highly accurate alerts and supporting Auto Tracking to automatically follow moving targets.
Clear Night Vision: Provides detailed black and white infrared night vision for monitoring distances up to 30 meters (98 feet), offering reliable security coverage even in total darkness.
Flexible Storage and Connectivity: Supports large local storage using a microSD card up to 512 Gigabytes and offers both Wi-Fi (2.4 GHz) and RJ45 wired network options for stable connectivity.
