Specification Category |
Feature |
Technical Detail |
|
General |
Model / Item Code |
CS-H9c-R100-8G55WKFL |
|
|
IP Grade |
Weatherproof Design |
|
|
Operating Temperature |
Minus 30 degrees C to 50 degrees C |
|
Camera/Video |
Max Resolution |
2880 x 1620 Pixels (Ultra HD) |
|
|
Dual Lens Focal Length |
Fix: 2.8mm; P/T: 6mm |
|
|
PT Angle |
Pan: 350 degrees, Tilt: 80 degrees |
|
|
Black & White Night Range |
30 meters / 98 feet |
|
|
Video Compression |
H.265 / H.264 |
|
Connectivity |
Wi-Fi Standard |
IEEE802.11b/g/n (2.4 GHz) |
|
|
Wired Network |
RJ45 x 1 (10M / 100M Adaptive Ethernet Port) |
|
|
Local Storage |
Supports MicroSD Card (Up to 512 GB) |
|
|
Power Supply |
DC 12V/1.5A |
|
|
Power Consumption |
Max. 12 Watts |
|
Audio |
Two-way Talk |
|
|
Frame Rate |
Maximum 15 frames per second |
|
|
Certifications |
CE, UKCA, WEEE, RoHS, REACH |
|
|
Weight |
Net Weight: 668 grams |
|
Ultra HD 5MP Resolution: Captures exceptionally clear and detailed video with a maximum resolution of 2880 by 1620 pixels, providing superior clarity and detail for digital zooming.

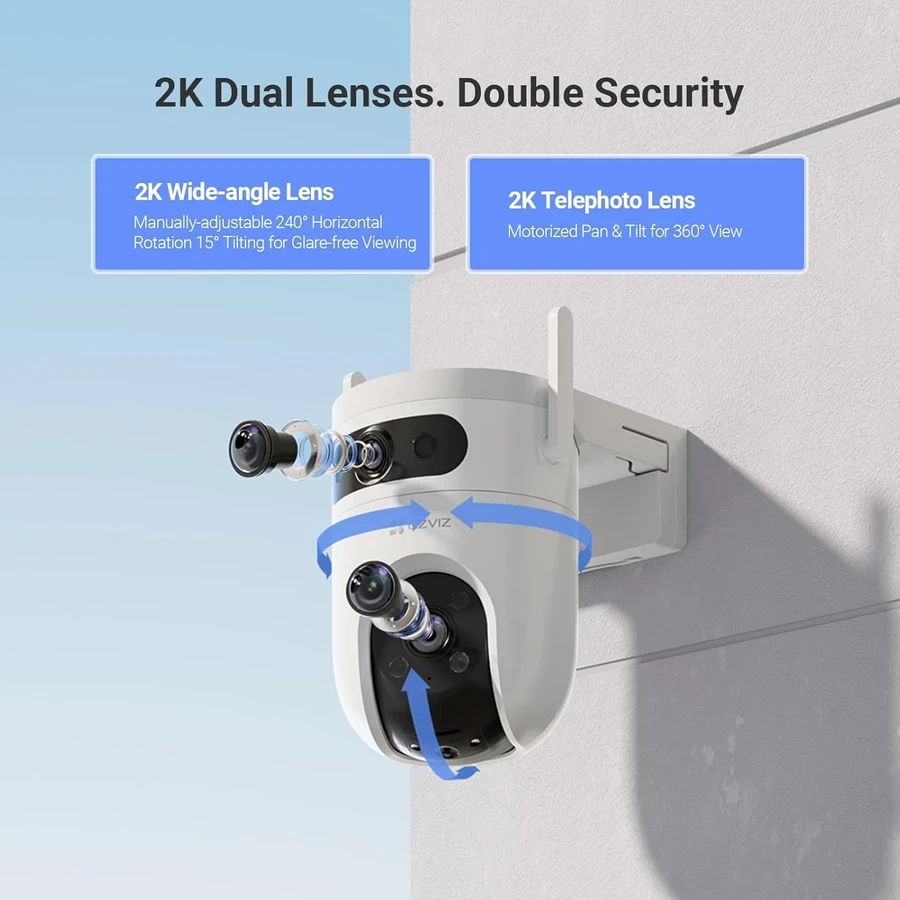

Dual-Lens Hybrid Monitoring: Features one fixed wide-angle lens (2.8mm) and one motorized Pan-Tilt lens (6mm) to capture both an overview and a detailed tracking shot simultaneously, eliminating surveillance blind spots.
Smart 360-Degree Tracking: The motorized lens provides 350-degree pan and 80-degree tilt capability, combined with AI-powered Human and Vehicle Detection and Auto Tracking for precise monitoring of moving subjects.
Reliable Night Vision and Two-Way Audio: Offers clear black and white infrared night vision up to 30 meters (98 feet) and supports Two-Way Talk for remote communication.
Robust and Flexible Design: Built with a Weatherproof Design suitable for outdoor use and supports flexible storage options, including a local microSD card up to 512 Gigabytes.
