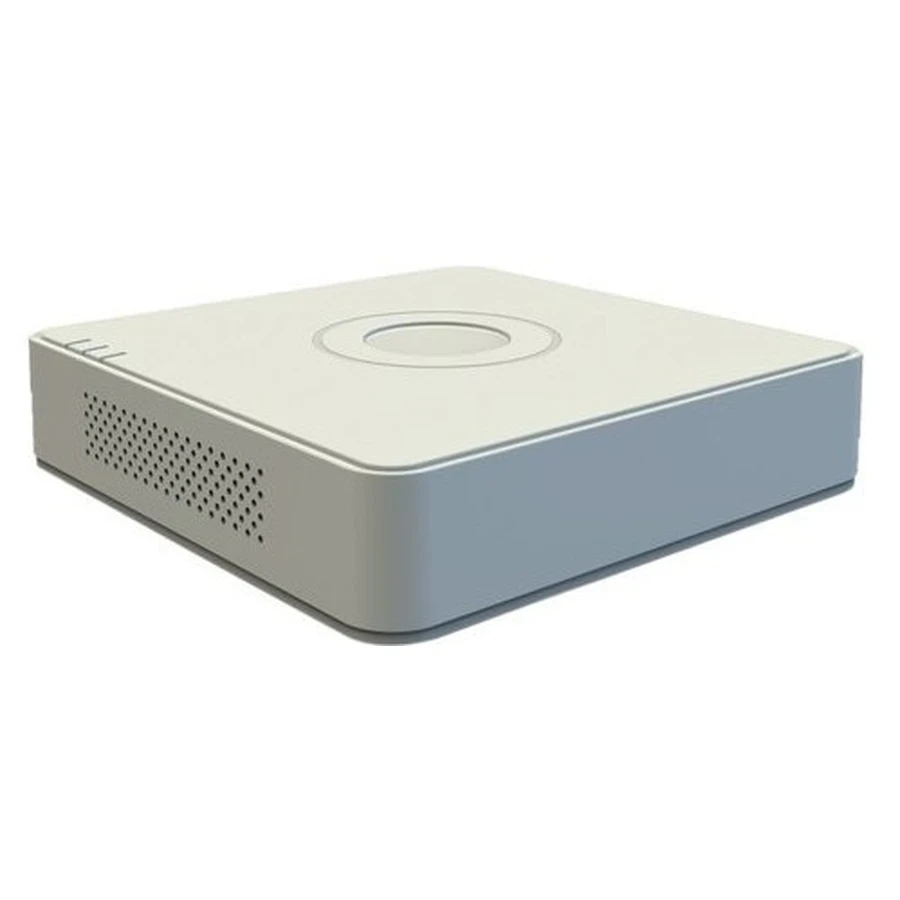

Hikvision 4-Port & 8-Port Hybrid DVRs | 4MP Lite & 3MP Support | H.265 Pro+ | DS-7104HQHI-K1 & DS-7108HQHI-K1
|
Specification Category |
4-Port Model Detail |
8-Port Model Detail |
|
Model Number |
DS-7104HQHI-K1 |
DS-7108HQHI-K1 |
|
Analog Video Input |
4-Channel (BNC) |
8-Channel (BNC) |
|
IP Video Input |
1-ch (Up to 6-ch in Enhanced Mode) |
2-ch (Up to 10-ch in Enhanced Mode) |
|
Recording Resolution |
4MP Lite / 3MP / 1080p |
4MP Lite / 3MP / 1080p |
|
Video Compression |
H.265 Pro+ / H.265 Pro |
H.265 Pro+ / H.265 Pro |
|
SATA Interface |
1 SATA (Up to 6TB) |
1 SATA (Up to 6TB) |
|
HDMI Output |
1920 × 1080 / 60Hz |
4K (3840 × 2160) / 30Hz |
|
Audio via Coax |
Supported (4-ch) |
Supported (8-ch) |
|
Two-Way Audio |
1-ch (RCA) |
1-ch (RCA) |
|
Power Consumption |
≤ 8 W (Without HDD) |
≤ 15 W (Without HDD) |
|
Dimensions (W×D×H) |
200 × 200 × 45 mm |
285 × 210 × 45 mm |
- High-Efficiency H.265 Pro+ Compression: Dramatically reduces data storage and bandwidth needs by up to 75%, allowing for longer recording periods on a single 6TB HDD.
- Versatile 5-in-1 Signal Support: Self-adaptive BNC inputs seamlessly handle HDTVI, AHD, HDCVI, CVBS, and IP signals for maximum hardware compatibility.
- 4MP Lite & 3MP Recording: Supports high-resolution analog capture up to 4MP Lite, with dedicated 3MP resolution support on primary channels for critical area monitoring.
- Expandable IP Connectivity: Supplement your analog setup with additional IP cameras—up to 6MP resolution—creating a powerful hybrid security network.
- Long-Distance Transmission: Engineered for reliable signal integrity over long cable runs, reaching up to 800m for 1080p and 1200m for 720p HDTVI signals.
