Specification Category |
Feature |
Technical Detail |
|
General |
Ref No / SAP No |
EDH-SZP355-E2 / 140005338 |
|
|
Range Name |
Yellow Series Tools |
|
|
Colour |
Green |
|
|
Size & Spec. |
355x3.0x25.4mm |
|
|
HS Code |
6804221000 |
|
Material |
Abrasive Material |
Resin + Brown corundum + White corundum |
|
Performance |
Reinforcement |
Double-layer fiber mesh |
|
|
Application Suitability |
Cutting Metal and Inox materials |
|
Dimensions & Logistics |
Product Size (L x W x H) |
35.500 x 35.500 x 0.300 CM |
|
|
Product G.W / N.W (Unit) |
0.64 KG / 0.64 KG |
|
|
Master Quantity |
25 CAR |
|
|
CBM (m³) |
0.013 |
|
Max. Safe Speed |
~4,400 RPM |
|
|
Bond Type |
BF (Resinoid Bond) |
|
|
Disc Shape |
Type 41 (Flat) |
|
|
Operating Speed |
80 m/s |
|
Composite Abrasive Material: Utilizes high-quality abrasives, including Brown corundum and White corundum suspended in a Resin bond, delivering sharp, aggressive cutting and an optimal balance of hardness and toughness.

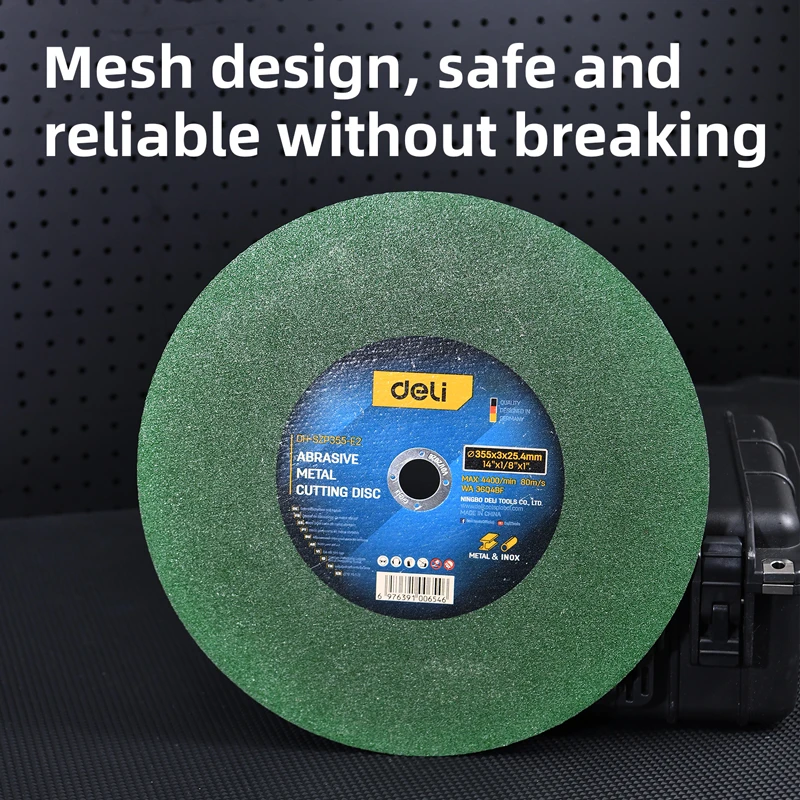

Enhanced Safety and Strength: Features a Double-layer fiber mesh design, which provides significantly enhanced tensile strength and ensures high security during high-speed cutting operations.

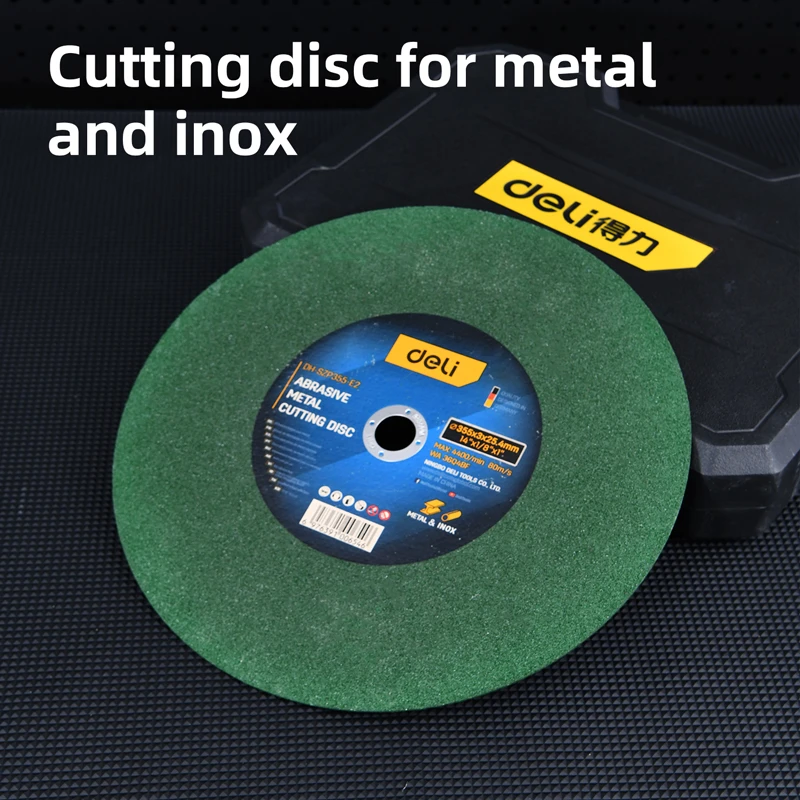

Versatile Metal Compatibility: Specifically formulated to be suitable for both general metal cutting and the more demanding task of cutting Inox (stainless steel) materials without excessive heat or contamination.

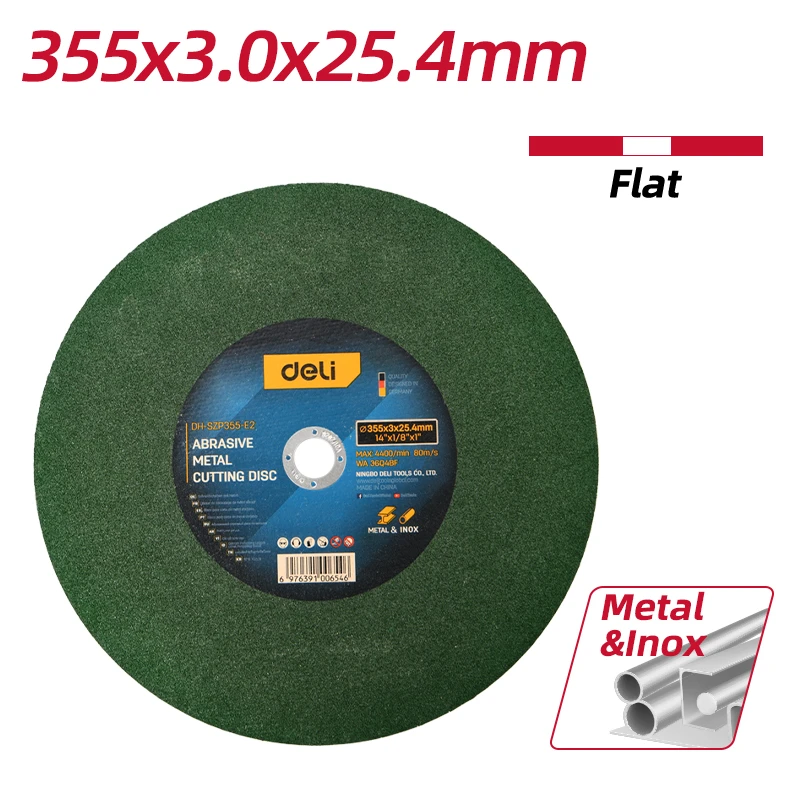

Industrial Standard Size: Large 355 mm (14-inch) diameter and 3.0 mm thickness with a standard 25.4 mm arbor hole, perfectly sized for industrial chop saws and stationary cut-off machines.
Precision and Efficiency: The combination of composite corundum and the precise 3.0 mm thickness ensures fast, precise cuts with minimal burr formation, maximizing efficiency on the job site
