Specification Category |
Feature |
Technical Detail |
|
General |
Ref No / SAP No |
EDH-MGP100-E1 / 100157952 |
|
|
Range Name |
Yellow Series Tools |
|
|
Colour |
Black |
|
|
HS Code |
8467991000 |
|
Material |
Abrasive Material |
Resin + Brown corundum + Carborundum |
|
Dimensions |
Size & Spec. |
100x6x16.0mm (OD x T x ID) |
|
|
Product Size (L x W x H) |
10.000 x 10.000 x 0.600 CM |
|
|
Product G.W / N.W (Unit) |
0.11 KG / 0.11 KG |
|
Performance |
Key Feature |
Thickened steel ring |
|
|
Application |
Metal Grinding |
|
Logistics |
Sales Pk. |
Hang Tag |
|
|
Master Quantity |
200 CAR |
|
|
CBM (m³) |
0.022 |
|
Max. Safe Speed |
~15,300 RPM |
|
|
Disc Shape |
Type 27 (Depressed Center) |
|
|
Operating Speed |
80 m/s |
|
|
Applicable Metals |
Iron, Mild Steel, Weld Beads, Fillets |
|
Heavy-Duty Thickness: Features a substantial 6.0 mm thickness, specifically designed for aggressive grinding, rapid stock removal, heavy weld smoothing, and demanding surface preparation tasks.

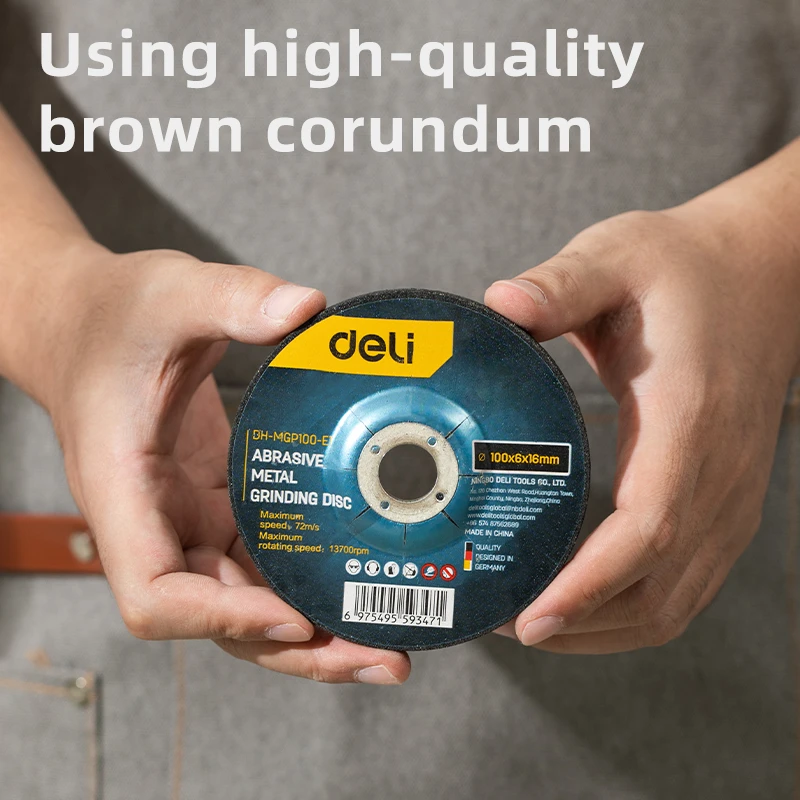

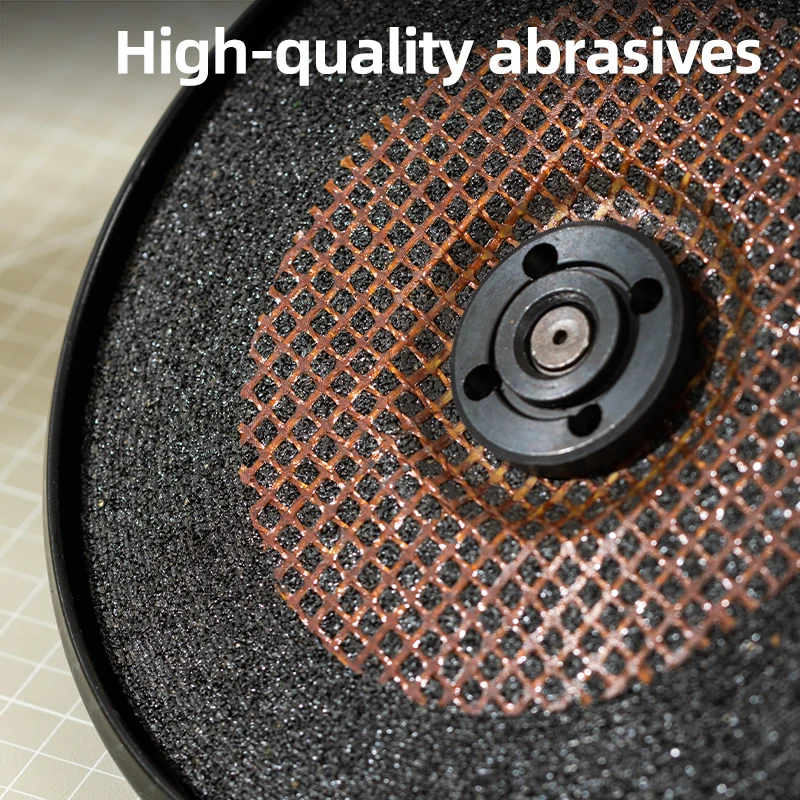

Premium Abrasive Compound: Made from a Composite material of Brown corundum and Carborundum in a Resin bond, delivering excellent wear resistance, high sharpness, and maximum durability.

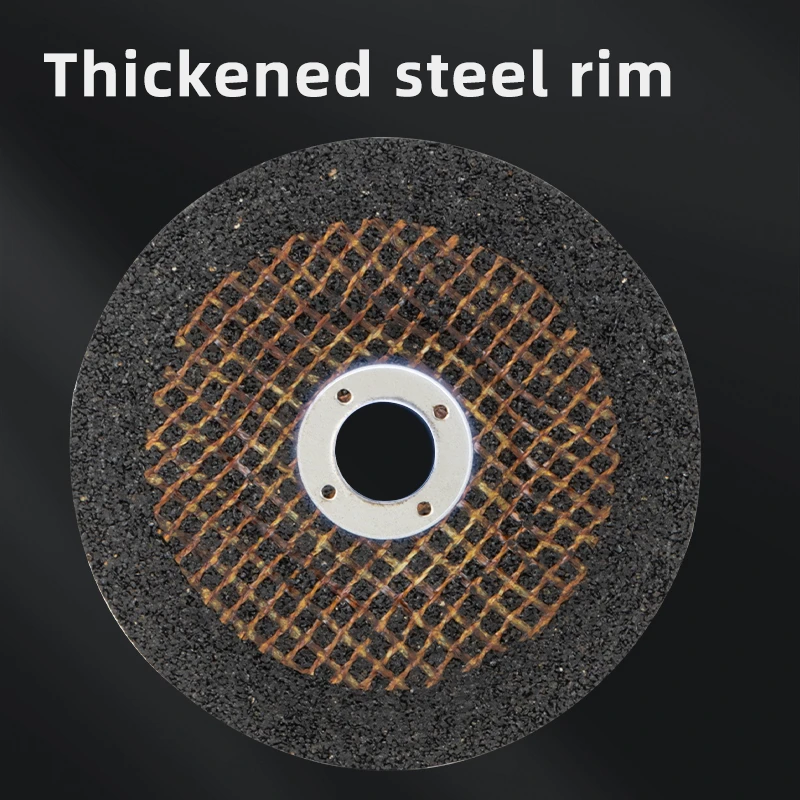

Enhanced Stability and Safety: Includes a Thickened steel ring around the arbor hole to ensure enhanced holding strength, preventing the disc from collapsing or loosening under heavy work stress.

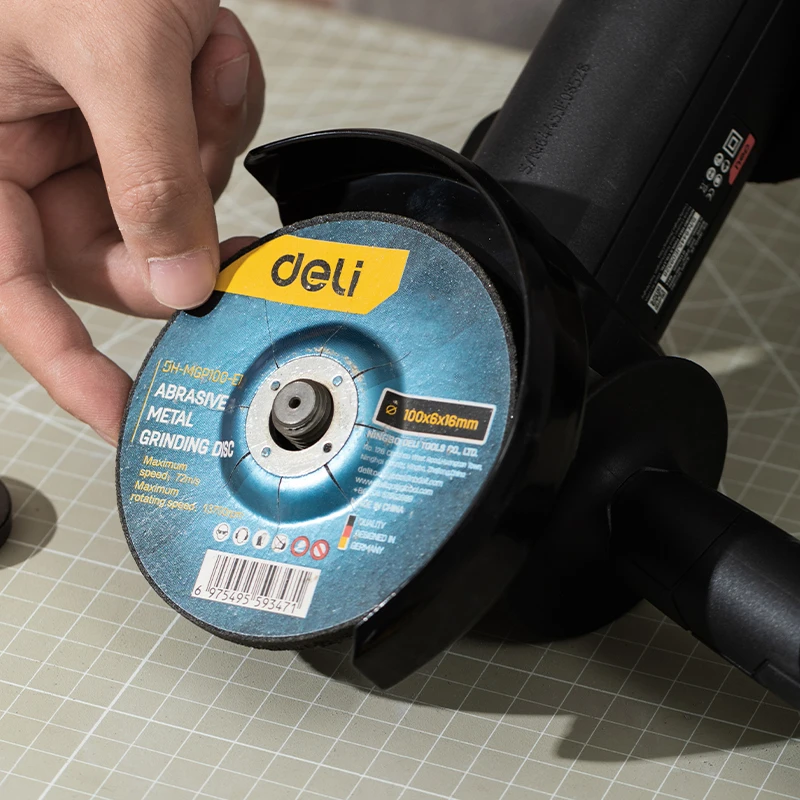

Standard Angle Grinder Fit: Measures 100 mm (4 inches) in diameter with a standard 16.0 mm arbor hole, perfectly fitting all common 4-inch portable angle grinders.
Lightweight and Efficient: Despite its robust 6mm thickness, the disc maintains a low unit weight of 0.11 KG, contributing to reduced operator fatigue during prolonged grinding applications.
