Specification Category |
Feature |
Technical Detail |
|
General |
Ref No / SAP No |
EDH-SZP107-E2 / 140005329 |
|
|
Range Name |
Yellow Series Tools |
|
|
Colour |
Black |
|
|
HS Code |
6804221000 |
|
Material |
Abrasive Material |
Resin + Brown corundum + White corundum |
|
Dimensions |
Size & Spec. |

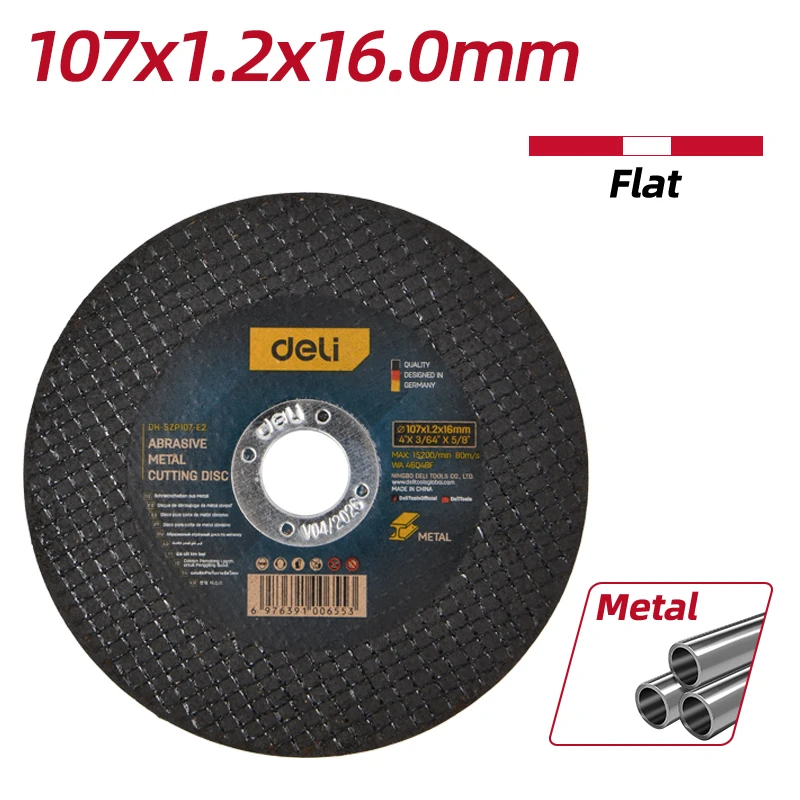

107x1.2x16.0mm (OD x T x ID) |
|
|
Product Size (L x W x H) |
10.700 x 10.700 x 0.120 CM |
|
|
Product N.W (Unit) |
0.02 KG (20g) |
|
Performance |
Reinforcement |
Double-layer fiber mesh |
|
|
Max. Speed (Web Ref) |
15,200 RPM / 80 m/s |
|
|
Application |

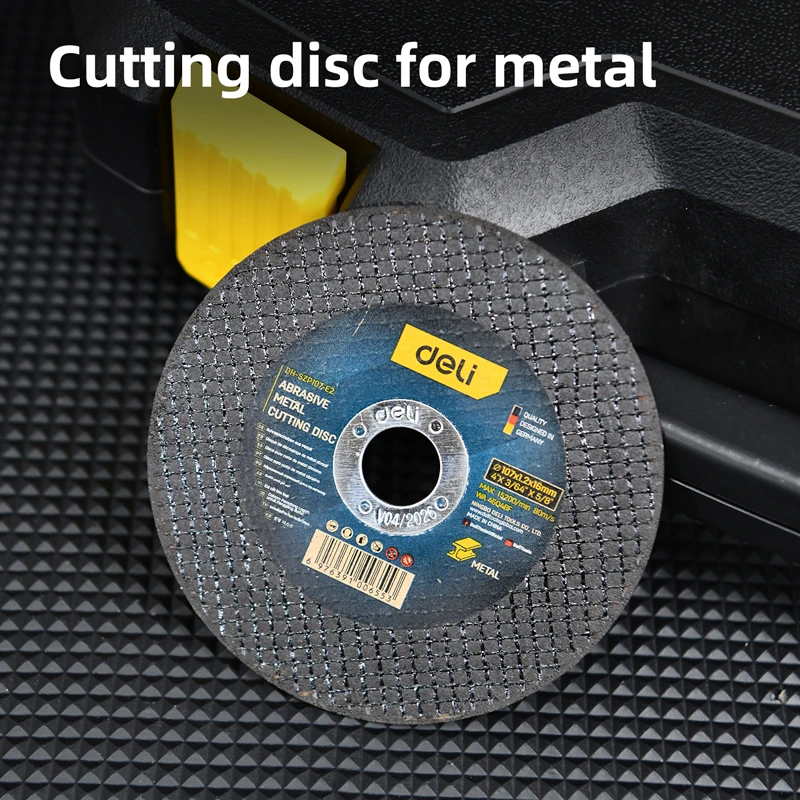

Cutting Metal Materials |
|
Logistics |
Master Quantity |
800 CAR |
|
|
CBM (m³) |
0.02 |
|
Max. Operating Speed |
80 m/s |
|
|
Application Suitability |
Steel, Mild Steel, Rebar, Inox (Stainless Steel) |
|
|
Disc Shape |
Type 41 (Flat) |
|
|
Cut Finish |
Burr-free and clean edge finish |
|
Ultra-Thin Precision: Features an ultra-thin 1.2 mm thickness (kerf), which allows for extremely sharp, fast cutting with minimal material loss and reduced heat generation.
Composite Abrasive Formula: Made from a mix of Brown corundum and White corundum (Aluminum Oxide) in a Resin bond, providing high-quality, aggressive cutting on both general metal and steel.

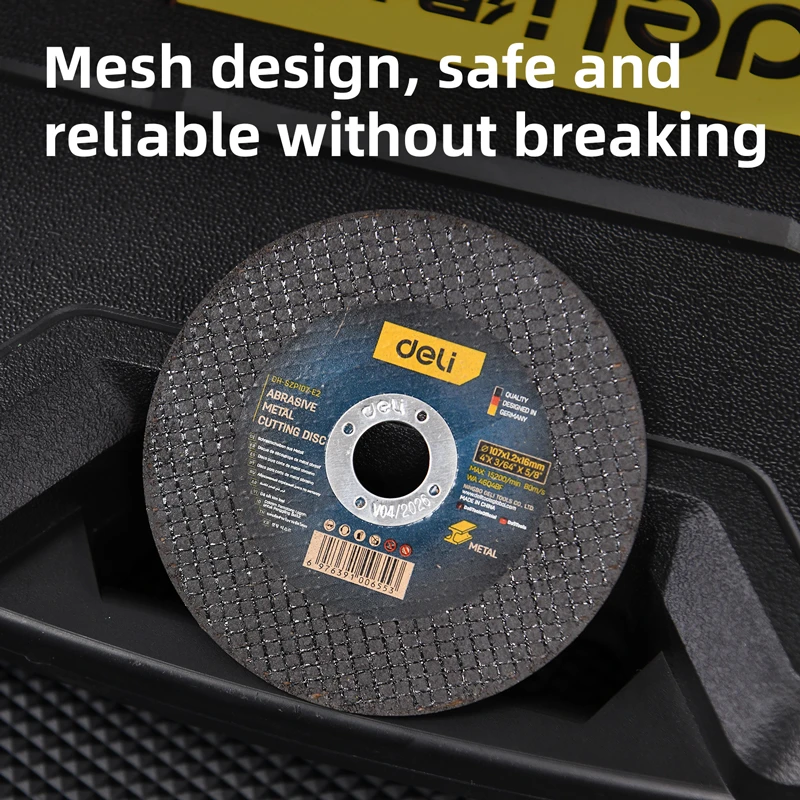

Enhanced Safety and Durability: Reinforced with a Double-layer fiber mesh that significantly boosts the disc's tensile strength and ensures high security during high-speed operation.
Angle Grinder Ready: With a 107 mm diameter and standard 16.0 mm arbor hole, this disc is the optimal size for all common 4-inch (100mm/107mm) portable angle grinders.
Extreme Operating Speed: Engineered to handle the high speeds of modern angle grinders, rated for a typical maximum safe speed of up to 15,200 RPM.
